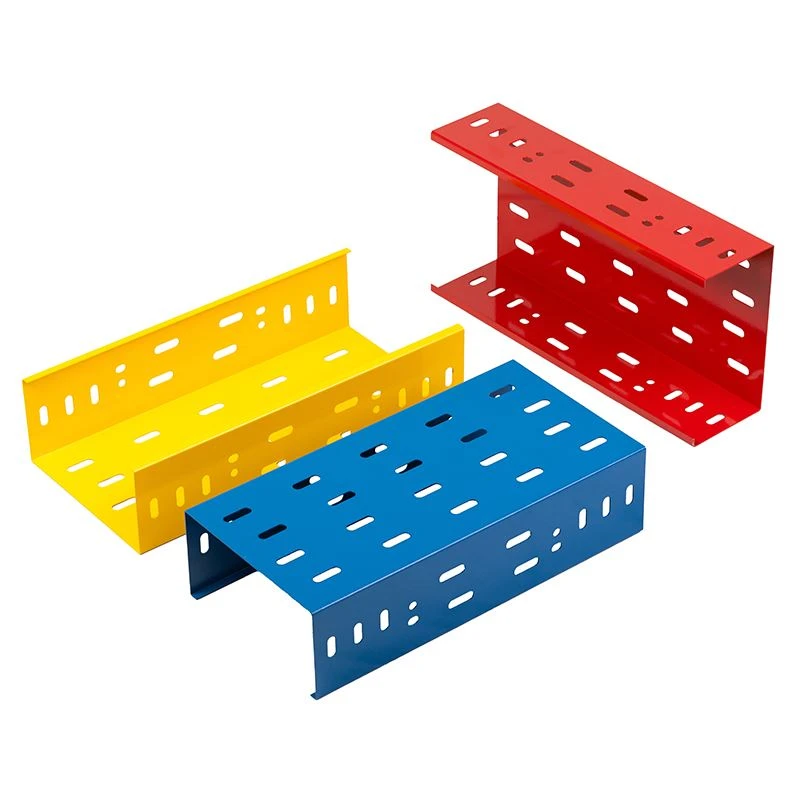

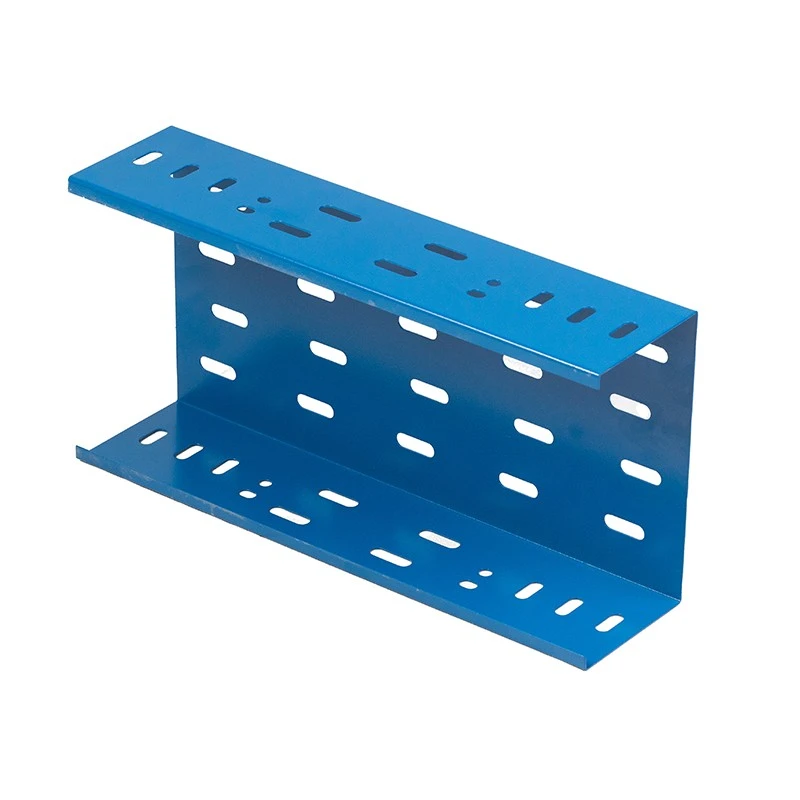

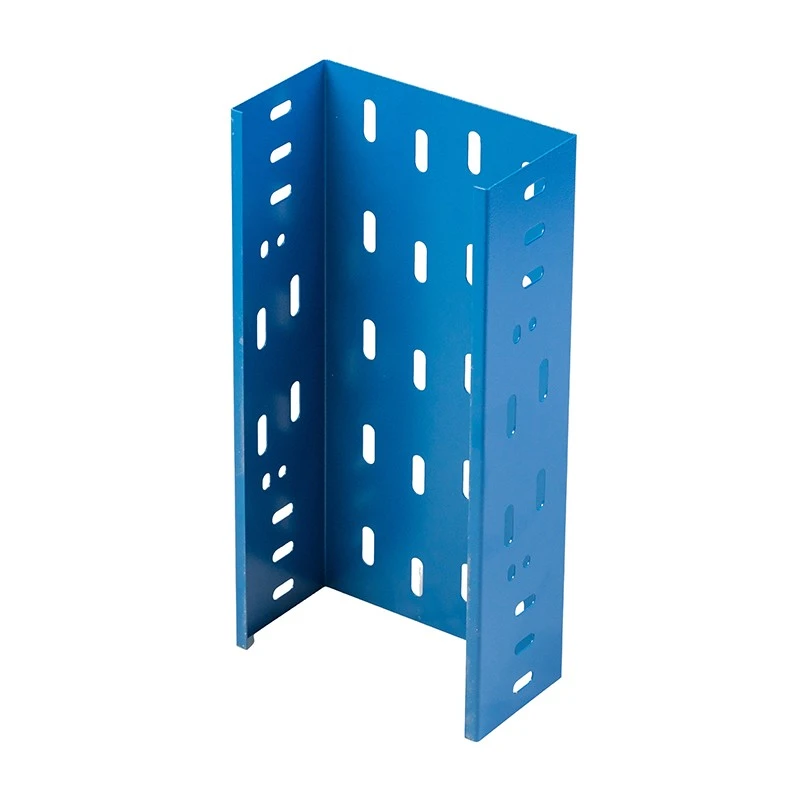

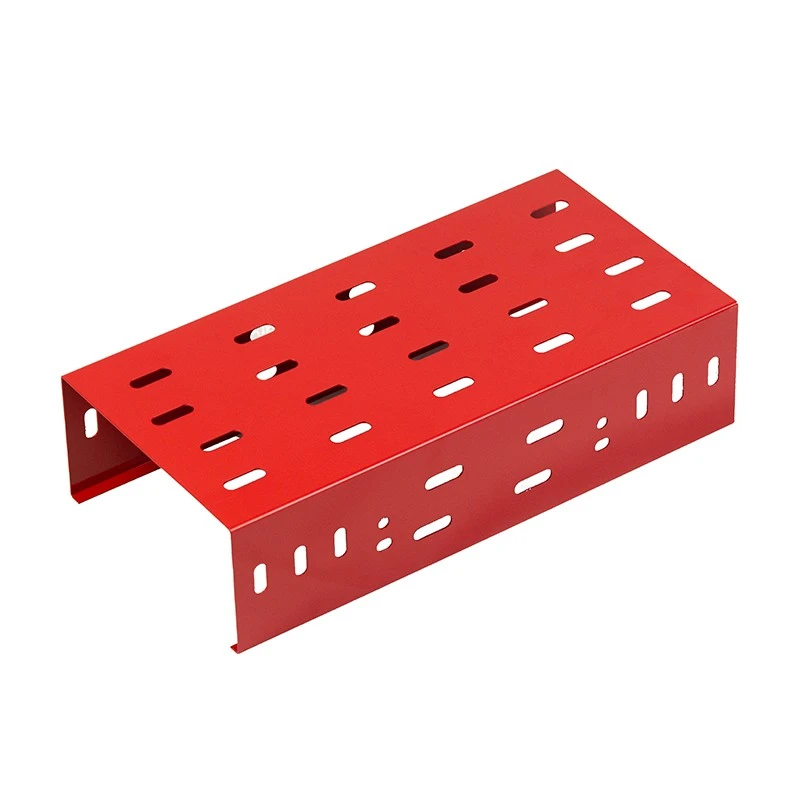

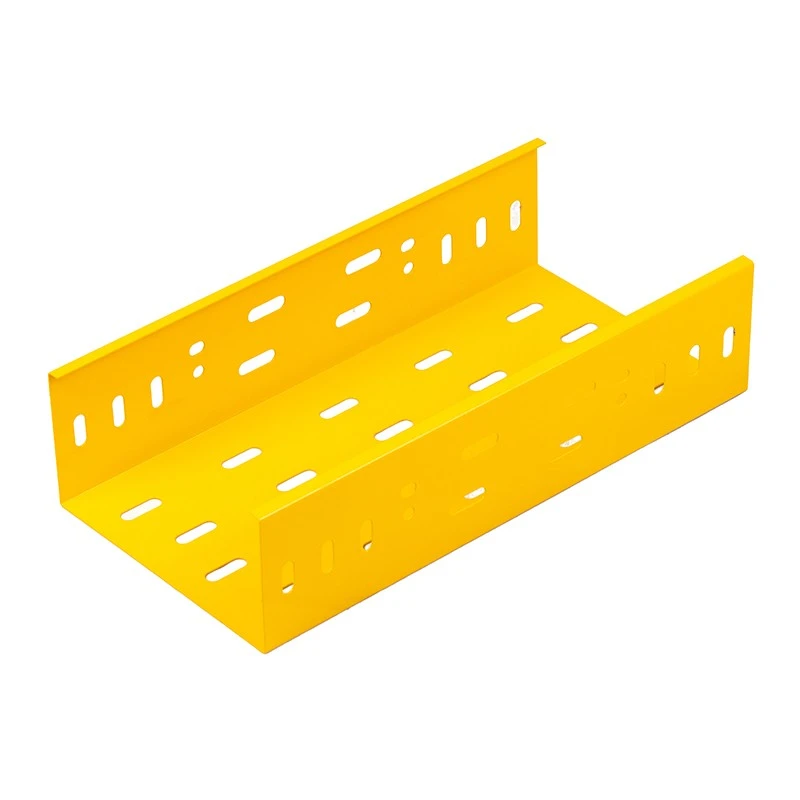

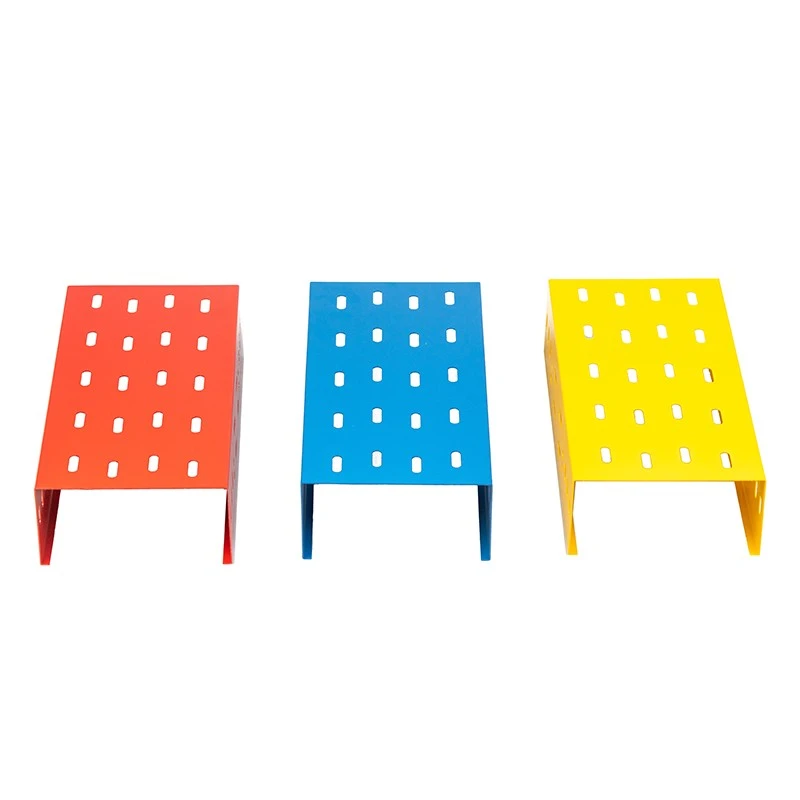

Steel trays are heavy. They are hard to handle. They can rust. Our Aluminium Perforated Cable Tray solves these problems. Aluminum weighs much less than steel. A section of aluminum tray weighs about 35% less than a steel section. This makes it easier to handle and install. It also reduces the load on building structures. Aluminum does not rust. It stays clean. It does not need painting. This tray is perfect for weight-sensitive and corrosion-sensitive projects.
Excellent Heat Dissipation
The perforated design works well with aluminum. The holes let heat escape. Cables stay cool. The holes also make the tray even lighter. The tray has a matrix hole pattern. The holes are arranged in regular rows. This provides uniform strength. The hole edges are smooth. No sharp metal. The tray does not bend or sag under normal loads. The maximum deflection stays under 1/200 of the span. We use 6063 aluminum alloy for this tray. It is strong and durable.
Perfect for Data Centers and Solar Projects
The Aluminium Perforated Cable Tray is widely used in data centers. The lightweight design makes overhead installation easier. The corrosion resistance protects against humidity. The open design provides cooling. Solar farms also use this tray. The aluminum does not rust in outdoor conditions. The perforations allow rain water to drain. The tray does not trap moisture. We offer the tray in standard widths and heights. We also offer custom sizes. All accessories match the aluminum tray. Our 2-year warranty covers everything.
Product Specifications
|
Parameter |
Specifications / Options |
|
Width |
50, 100, 150, 200, 250, 300, 400, 500, 600, 800, 1000mm (custom up to 1200mm) |
|
Side Height |
25, 50, 100, 150, 200mm |
|
Standard Length |
2000mm, customizable to 3000/4000/6000mm |
|
Structure |
Perforated tray style. Matrix hole pattern. 6063 aluminum alloy. Lightweight construction (35% lighter than steel). |
|
Material & Finish |
6063 Aluminum: Anodized (≥12μm), salt spray ≥480h. Optional fluorocarbon coating for extreme outdoor conditions (≥1000h salt spray). |
|
Plate Thickness |
W≤150mm: 1.2mm; 150<W≤300: 1.5mm; 300<W≤500: 2.0mm; 500<W≤800: 2.5mm; W>800: 3.5mm |
|
Load Performance |
Deflection ≤ Span / 200 at rated load. Meets JB/T 10216-2025 standard. |
|
Accessories |
90° bends, tees, crosses, reducers, end caps, splice plates, grounding clips, aluminum-specific bolts, brackets, drop rods. All accessories match the aluminum material and finish. |
