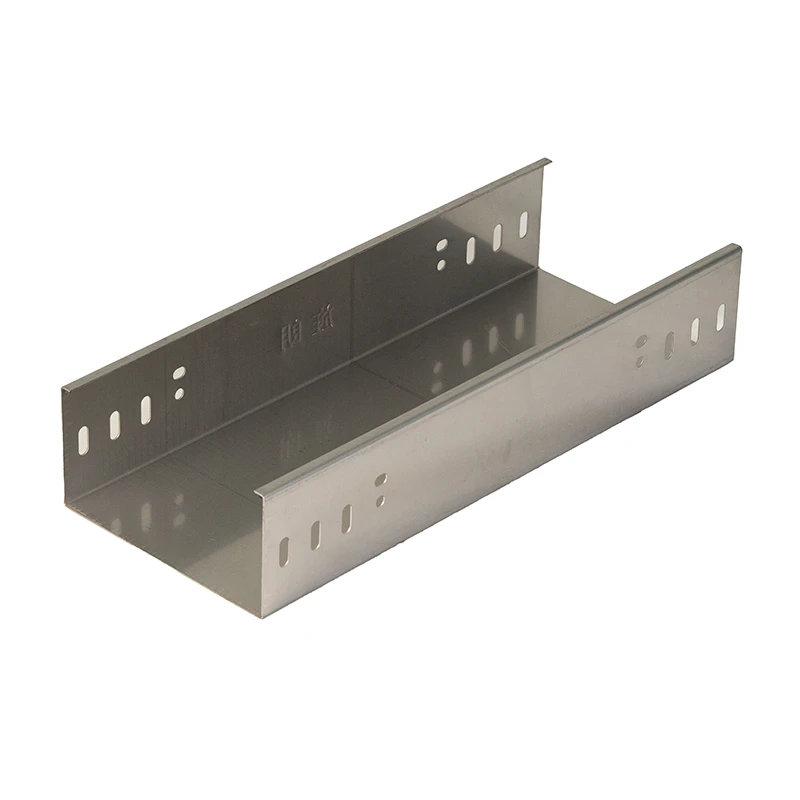

Sometimes you do not want holes in your cable tray. The cables need complete support. Dust and debris should not fall through. Our Non Perforated Cable Tray has a solid bottom. No perforations. No slots. No openings. The bottom is one continuous piece of metal. This gives full support to every cable. Small cables cannot slip through. Heavy cables do not deform the tray. The solid bottom also catches any drips or debris.
Strong and Rigid Construction

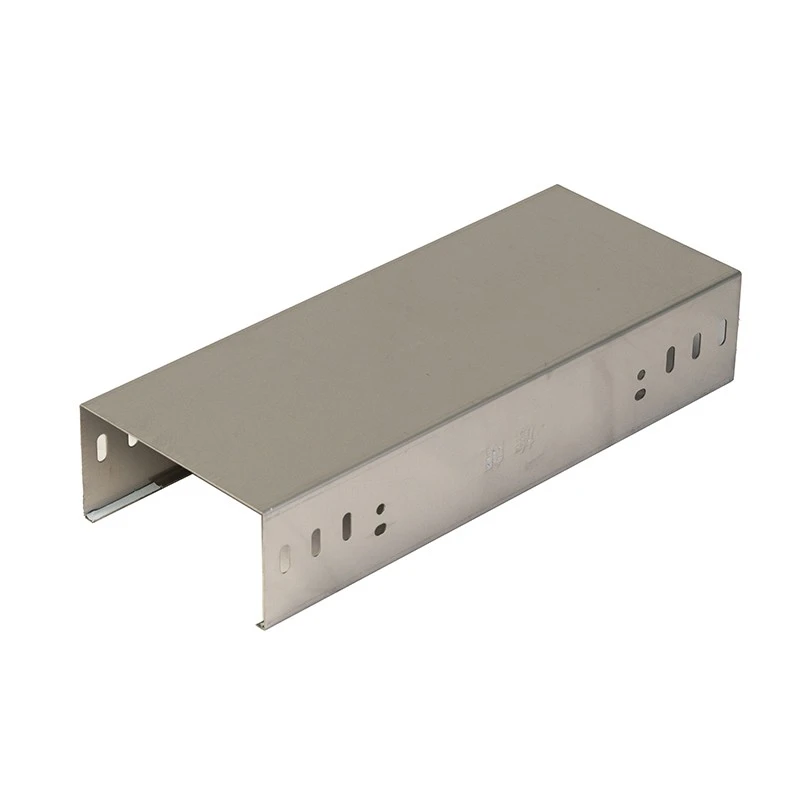

We build this tray with a solid steel bottom. The sides are bent upward for strength. We add reinforcing ribs to prevent sagging. The tray is rigid and stable. It carries its rated load without bending. We test every batch for deflection. Under full load, the deflection stays under 1/200 of the span. This meets all standard requirements. The tray is available with or without a cover. With a cover, the tray is fully enclosed. This gives maximum protection.
Used in Clean and Sensitive Areas
The Non Perforated Cable Tray is used in many applications. Food processing plants use it. They do not want crumbs falling through. Pharmaceutical factories use it. They need clean surfaces that are easy to sanitize. Data centers use it. They want to prevent dust from falling onto equipment below. The tray is available in steel, stainless steel, and aluminum. All accessories match the tray material. Splice plates, brackets, and drop rods are all made to the same standard. Our 2-year warranty covers everything.
Product Specifications
|
Parameter |
Specifications / Options |
|
Width |
50, 100, 150, 200, 250, 300, 400, 500, 600, 800, 1000mm (custom up to 1200mm) |
|
Side Height |
25, 50, 100, 150, 200mm |
|
Standard Length |
2000mm, customizable to 3000/4000/6000mm |
|
Structure |
Solid bottom tray. No perforations, slots, or openings. Continuous metal surface. Reinforcing ribs to prevent sagging. |
|
Material & Finish |
Q235 Carbon Steel: Powder coating (≥60μm) or Hot-dip galvanized (≥65μm, ≥480h salt spray). Stainless Steel: 304 or 316L. Aluminum: 6063, anodized (≥12μm). |
|
Plate Thickness (Steel/SS) |
W≤150mm: 1.0mm; 150<W≤300: 1.2mm; 300<W≤500: 1.5mm; 500<W≤800: 2.5mm; W>800: 3.0mm |
|
Plate Thickness (Aluminum) |
W≤150mm: 1.2mm; 150<W≤300: 1.5mm; 300<W≤500: 2.0mm; 500<W≤800: 2.5mm; W>800: 3.5mm |
|
Load Performance |
Deflection ≤ Span / 200 at rated load. Meets JB/T 10216-2025 standard. |
|
Accessories |
90° bends, tees, crosses, reducers, end caps, full cover plates, splice plates, grounding clips, bolts, brackets, drop rods |
