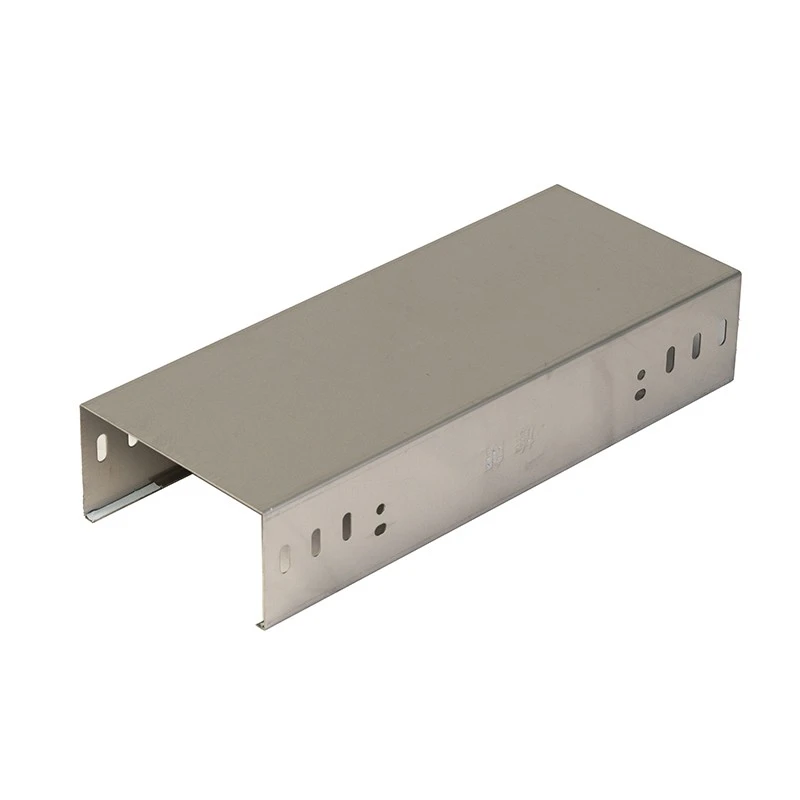

304 is the standard stainless steel grade. It is used in thousands of applications. It offers good corrosion resistance at a reasonable price. Our SS 304 Cable Tray is made from certified 304 material. The nickel content is 8% or higher. The chromium content is 18% or higher. We test every batch of material. We provide material certificates with every shipment. You know exactly what you are getting.
Surface Finish for Long Life
We pay attention to the surface finish. The tray is electrolytically polished. This removes welding oxides and discoloration. The surface becomes smooth and shiny. It does not trap dirt or particles. We also perform a passivation treatment. This removes free iron from the surface. It enhances the corrosion resistance. The tray will not rust in normal indoor and outdoor applications. It passes 400 hours of salt spray testing.
Available in Multiple Styles
The SS 304 Cable Tray is available in many styles. You can order it as a trough tray for full enclosure. You can order it as a ladder tray for maximum ventilation. You can order it as a wire mesh tray for flexibility. You can also order it as a perforated tray for cooling and drainage. We manufacture all standard widths and heights. All accessories are made from the same 304 material. Splice plates, brackets, and bolts all match the tray. Our 2-year warranty covers the complete system.
Product Specifications
|
Parameter |
Specifications / Options |
|
Width |
50, 100, 150, 200, 250, 300, 400, 500, 600, 800, 1000mm |
|
Side Height |
25, 50, 100, 150, 200mm |
|
Standard Length |
2000mm, customizable to 3000/4000/6000mm |
|
Structure |
Available in trough, ladder, wire mesh, or perforated styles. All styles use certified 304 stainless steel. |
|
Material & Finish |
304 Stainless Steel: Ni ≥8%, Cr ≥18%. Electrolytic polished. Passivation treated. Salt spray ≥400h. |
|
Plate Thickness (Trough/Ladder) |
W≤150mm: 1.0mm; 150<W≤300: 1.2mm; 300<W≤500: 1.5mm; 500<W≤800: 2.5mm; W>800: 3.0mm |
|
Load Performance |
Deflection ≤ Span / 200 at rated load. Meets JB/T 10216-2025 standard. |
|
Accessories |
Bends, tees, crosses, reducers, end caps, cover plates, splice plates, grounding clips, bolts, brackets, drop rods. All accessories made from 304 stainless steel. |
