Every cable tray needs support. It needs brackets, hangers, and struts. These supports must be strong. They must resist rust. Our Hot Dip Galvanized C Channel is the solution. This is the channel you use for overhead supports, wall brackets, and floor stands. It is made from Q235B steel. It is hot-dip galvanized. The zinc coating is 65μm or thicker. This channel will not rust. It will last for many years.
Strong and Easy to Work With

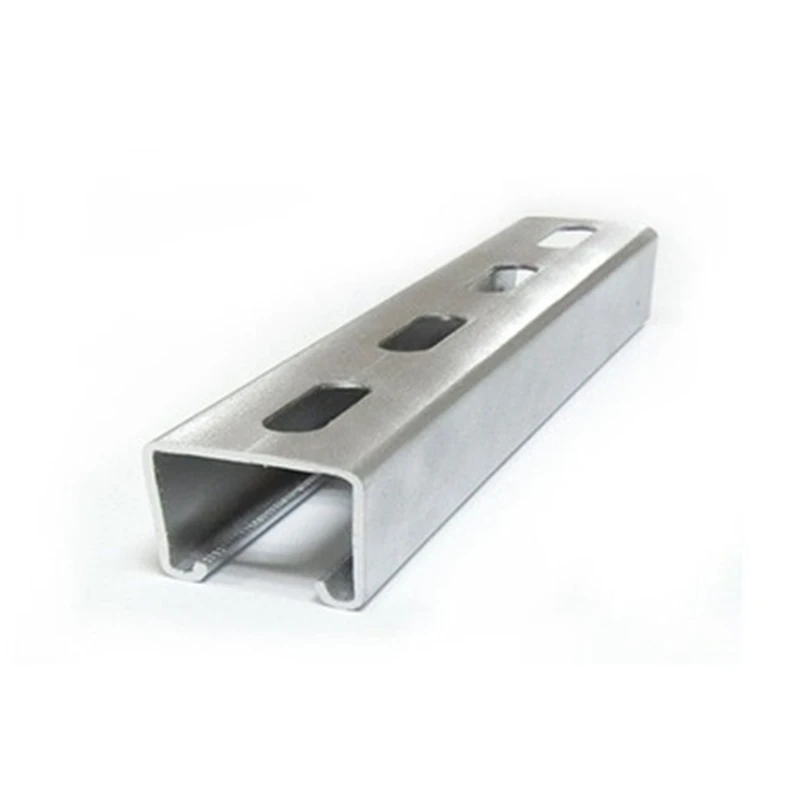

The C Channel is roll-formed from steel. The shape is a C. The edges are rolled inward. This adds strength. The channel has pre-punched holes. The holes are oval shaped. They are spaced 50mm apart. You can adjust the height easily. No need to drill holes on site. The channel works with standard hardware. Spring nuts, T-bolts, and brackets all fit perfectly. The channel can be used as a single piece. It can also be doubled up for extra strength.
Available in Multiple Sizes and Thicknesses
The Hot Dip Galvanized C Channel comes in many sizes. The most common sizes are 41x21mm, 41x41mm, 41x52mm, 41x62mm, and 41x72mm. We also offer larger sizes for building purlins. Sizes include C80, C100, C120, C140, and C160. The wall thickness ranges from 2.0mm to 3.0mm. The standard length is 6000mm. We can cut to your required length. All hardware matches the galvanized finish. Our 2-year warranty covers everything.
Product Specifications
|
Parameter |
Specifications / Options |
|
Common Sizes |
41x21mm, 41x41mm, 41x52mm, 41x62mm, 41x72mm. Building purlins: C80, C100, C120, C140, C160. |
|
Wall Thickness |
2.0mm (light duty), 2.5mm (medium duty), 3.0mm (heavy duty) |
|
Standard Length |
6000mm. Custom lengths available on request. |
|
Structure |
Roll-formed C shape. Inward rolled edges for strength. Pre-punched oval holes at 50mm spacing. |
|
Material & Finish |
Q235B Cold-rolled Steel. Hot-dip galvanized: zinc layer ≥65μm, single-side zinc weight ≥500g/m². Salt spray ≥480h. |
|
Load Capacity |
2.0mm: Light duty for small trays and pipe supports. 2.5mm: Medium duty for standard tray brackets (most common). 3.0mm: Heavy duty for large span trays and seismic supports. |
|
Accessories |
Spring nuts, T-bolts, bracket connectors, splice plates, seismic connectors. All accessories match the galvanized finish. |
