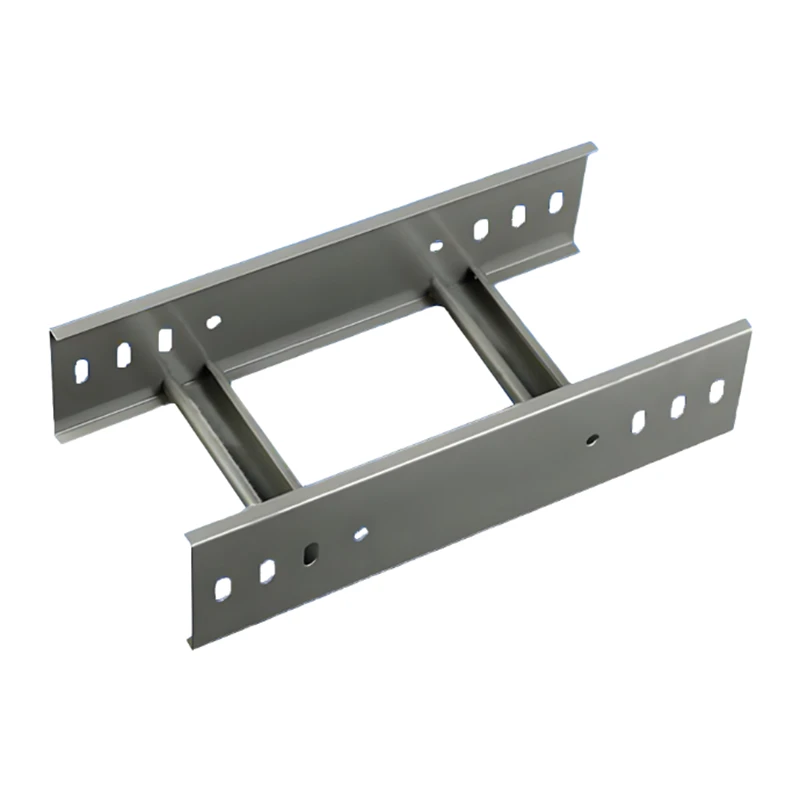

Ladder trays are known for their strength. They carry heavy cables across long spans. But carbon steel ladder trays rust in wet environments. Our Stainless Steel Cable Ladder gives you the best of both. You get the strong ladder design. You also get the corrosion resistance of stainless steel. This ladder will not rust. It will not weaken over time. It will support your cables for decades.
Heavy-Duty Construction for Demanding Applications
This ladder is built for heavy loads. The side rails are made from stainless steel plate. The rungs are welded between the rails. Each weld is strong and smooth. The rung spacing is 300mm. This provides good support for the cables. The ladder can be used in long spans. It carries heavy cable bundles without sagging. We test every batch. The deflection under full load stays under 1/200 of the span. This meets all industrial standards.
Marine, Chemical, and Food Applications
The Stainless Steel Cable Ladder is used in demanding industries. Shipbuilders use it on vessels. The stainless steel resists salt water corrosion. Chemical plants use it. The stainless steel resists acid and alkali fumes. Food processing plants use it. The stainless steel is easy to clean and sanitize. We offer the ladder in 304 and 316 grades. 304 is the standard choice. 316 is for the most corrosive environments. All accessories match the ladder material. Our 2-year warranty covers everything.
Product Specifications
|
Parameter |
Specifications / Options |
|
Width |
50, 100, 150, 200, 250, 300, 400, 500, 600, 800, 1000mm (custom up to 1200mm) |
|
Side Height |
25, 50, 100, 150, 200mm |
|
Standard Length |
2000mm, customizable to 3000/4000/6000mm |
|
Structure |
Ladder style with stainless steel side rails and rungs. Rung spacing: 300mm. Strong welded connections. |
|
Material & Finish |
304 Stainless Steel: 8% Ni, 18% Cr, salt spray ≥400h. 316 Stainless Steel: Contains molybdenum, salt spray ≥600h. |
|
Plate Thickness |
W≤150mm: 1.0mm; 150<W≤300: 1.2mm; 300<W≤500: 1.5mm; 500<W≤800: 2.5mm; W>800: 3.0mm |
|
Load Performance |
Deflection ≤ Span / 200 at rated load. Meets JB/T 10216-2025 standard. |
|
Accessories |
90° bends, tees, crosses, reducers, end caps, splice plates, grounding clips, bolts, brackets, drop rods. All accessories match the stainless steel grade. |
