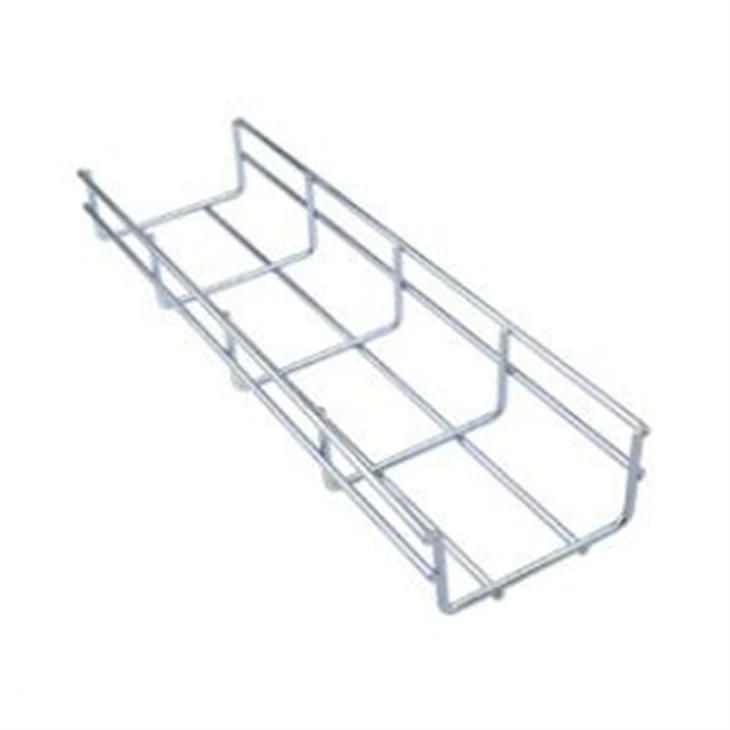

Data centers and laboratories have strict requirements. They cannot have rust anywhere. Rust particles can damage sensitive equipment. They can also ruin the clean appearance of the facility. Our Stainless Steel Wire Mesh Cable Tray solves this problem. It is made entirely from stainless steel. It never rusts. It never needs painting. It stays clean and professional-looking for the life of the building. This is the tray you choose when quality matters most.
Strong Welds and Open Design
We manufacture this tray using automatic welding machines. The wires are welded together at every intersection. Each weld is strong and smooth. There are no weak points. No broken welds. The open mesh design gives you excellent airflow. Cables stay cool. You can see every cable through the mesh. Inspection is quick and easy. The tray is also lightweight. One person can handle long sections. Installation goes faster. The tray can be cut on site with simple tools. You do not need special equipment.
Three Stainless Steel Grades to Choose From
We offer this tray in three stainless steel grades. 304 is the standard grade. It contains 8% nickel and 18% chromium. It resists rust in most indoor environments. 304L is a low-carbon version. The carbon content is below 0.03%. This prevents weld corrosion. It is ideal for high-humidity data centers. 316 is the premium grade. It contains molybdenum. This gives it excellent resistance to chlorides and acids. It is the best choice for coastal areas and chemical plants. All accessories match the tray grade. Our 2-year warranty covers everything.
Product Specifications
|
Parameter |
Specifications / Options |
|
Width |
50, 100, 150, 200, 300, 400, 500, 600mm (custom up to 800mm) |
|
Side Height |
30, 50, 75, 100, 150mm |
|
Standard Length |
2000mm, customizable to 3000/4000/6000mm |
|
Structure |
Stainless steel wire mesh. Automatic welded intersections. Strong, smooth welds. Open mesh design. Flexible for on-site cutting and bending. |
|
Material & Finish |
304 Stainless Steel: 8% Ni, 18% Cr, salt spray ≥400h. 304L Stainless Steel: Low carbon (≤0.03%), prevents weld corrosion. 316 Stainless Steel: Contains molybdenum, salt spray ≥600h. |
|
Wire Diameter (Load) |
Light Duty (4.0mm): For data, fiber optic, and monitoring cables. Medium Duty (5.0mm): For general power and telecom cables. Heavy Duty (6.0-8.0mm): For large cables and long spans. |
|
Load Performance |
Deflection ≤ Span / 200 at rated load. Welds tested for pull strength. |
|
Accessories |
Bends, tees, crosses, reducers, end caps, couplers, splice plates, grounding clips, hangers, brackets, drop rods. All accessories match the stainless steel grade. |
