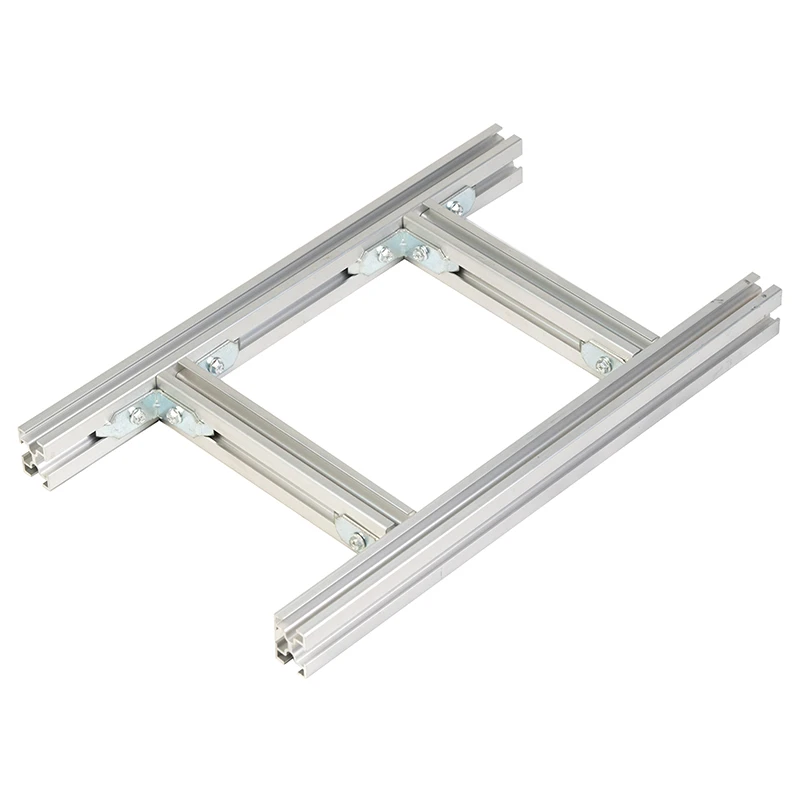

Ladder trays are strong. They carry heavy cables. They provide good ventilation. But steel ladder trays rust. Our Aluminium Cable Ladder gives you the ladder design without the rust problem. Aluminum does not rust. It stays clean. It stays strong. This ladder is perfect for outdoor projects, coastal areas, and any place where moisture is a concern. It gives you the strength you need with the corrosion resistance you want.
Strong Construction with Lightweight Material
This ladder is built with 6063 aluminum alloy. The material is strong and durable. The side rails are made from aluminum channel. The rungs are welded between the rails. Each weld is strong and smooth. The rung spacing is 300mm. This provides good support for your cables. The ladder can handle heavy loads. It does not sag or bend. We test every batch. Under full load, the deflection stays under 1/200 of the span. This meets all industrial standards. The ladder is also much lighter than steel. This makes installation faster and easier.
Used in Many Different Applications
The Aluminium Cable Ladder is used in many places. Solar farms use it. The aluminum resists outdoor weather. Chemical plants use it. The aluminum resists corrosive fumes. Marine applications use it. The aluminum resists salt water. Food processing plants use it. The aluminum is easy to clean. We offer the ladder in standard widths and heights. We also offer custom sizes. All accessories match the aluminum material. Splice plates, brackets, and bolts are all aluminum or stainless steel. Our 2-year warranty covers everything.
Product Specifications
|
Parameter |
Specifications / Options |
|
Width |
50, 100, 150, 200, 250, 300, 400, 500, 600, 800, 1000mm (custom up to 1200mm) |
|
Side Height |
25, 50, 100, 150, 200mm |
|
Standard Length |
2000mm, customizable to 3000/4000/6000mm |
|
Structure |
Ladder style with aluminum side rails and rungs. Rung spacing: 300mm. Strong welded connections. |
|
Material & Finish |
6063 Aluminum: Anodized (≥12μm), salt spray ≥480h. 6061-T6 High-Strength Aluminum: For heavy loads and long spans. Optional fluorocarbon coating for extreme outdoor conditions. |
|
Plate Thickness |
W≤150mm: 1.2mm; 150<W≤300: 1.5mm; 300<W≤500: 2.0mm; 500<W≤800: 2.5mm; W>800: 3.5mm |
|
Load Performance |
Deflection ≤ Span / 200 at rated load. Meets JB/T 10216-2025 standard. |
|
Accessories |
90° bends, tees, crosses, reducers, end caps, splice plates, grounding clips, aluminum-specific bolts, brackets, drop rods. All accessories match the aluminum material and finish. |
