Some projects require a solid bottom tray. The cables need complete support. There should be no holes underneath. Our Solid Bottom Tray gives you exactly that. The bottom is one continuous piece of steel. No perforations. No gaps. The tray holds cables securely from end to end. This is important for small cables that might slip through holes. It is also important for environments where dust or oil might fall from above.
Strong and Stable Construction
We build this tray with a solid steel bottom. The sides are bent upward. We add reinforcement to prevent sagging. The tray is rigid and stable. It does not bend under normal loads. We test every batch. Under full load, the deflection stays under 1/200 of the span. This meets all standard requirements. The tray is available in many widths and heights. We also offer it with or without a cover. With a cover, the tray becomes fully enclosed. This gives maximum protection for your cables.
Choose the Right Finish for Your Site

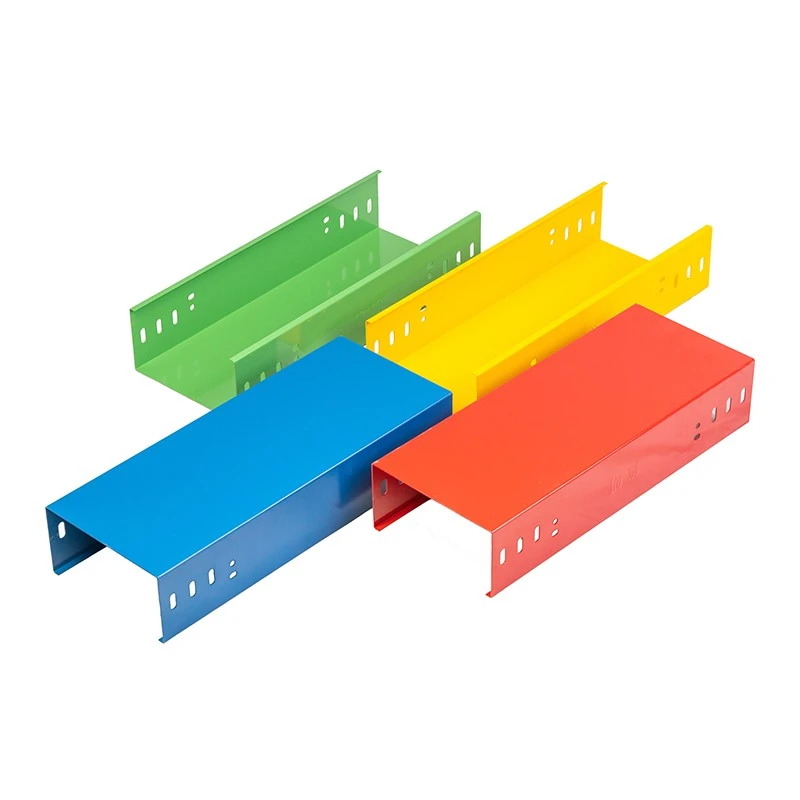

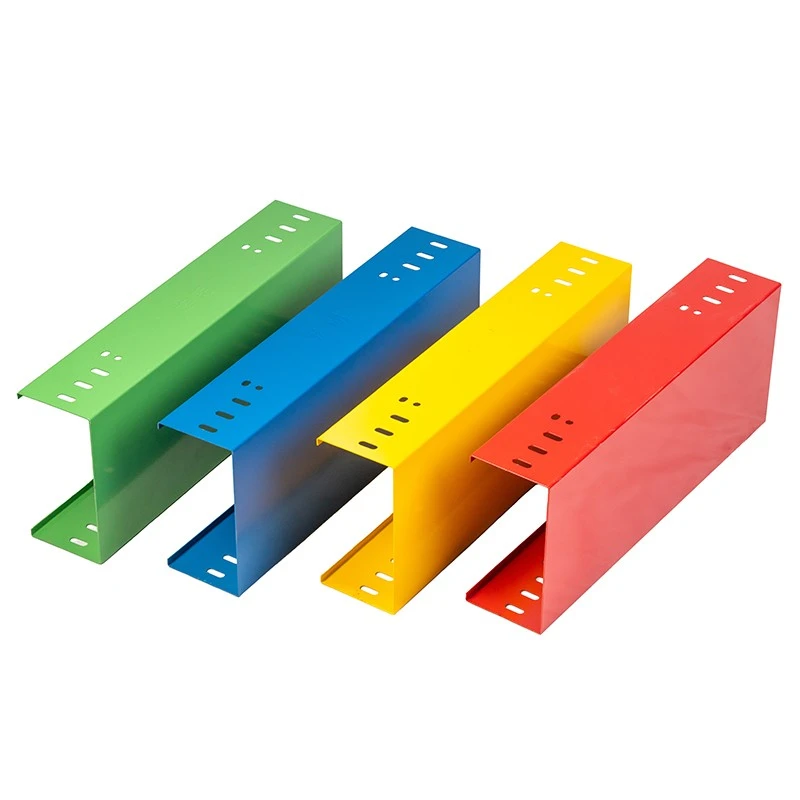

The Solid Bottom Tray comes in several material options. Powder-coated steel is the most popular choice for indoor work. The coating is 60μm thick. It is smooth and easy to clean. Hot-dip galvanized steel is for outdoor or damp areas. The zinc coating is 65μm or thicker. It resists rust and weathering. Stainless steel is for food plants, pharmaceutical factories, and wet environments. Aluminum is for weight-sensitive applications. All accessories match the tray material and finish. Splice plates, brackets, and drop rods are all built to the same standard. Our 2-year warranty covers the complete system.
Product Specifications
|
Parameter |
Specifications / Options |
|
Width |
50, 100, 150, 200, 250, 300, 400, 500, 600, 800, 1000mm (custom up to 1200mm) |
|
Side Height |
25, 50, 100, 150, 200mm |
|
Standard Length |
2000mm, customizable to 3000/4000/6000mm |
|
Structure |

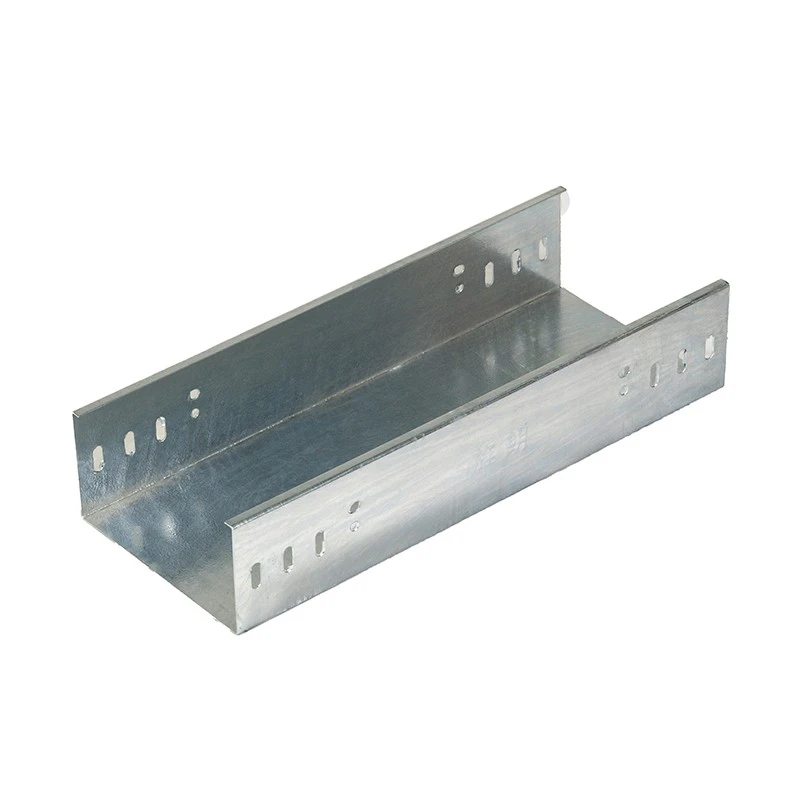

Solid bottom tray. No perforations. Continuous steel bottom. Bent side rails. Full cover available. |
|
Material & Finish |
Q235 Carbon Steel: Powder coating (≥60μm) or Hot-dip galvanized (≥65μm, ≥480h salt spray). Stainless Steel: 304 or 316L. Aluminum: 6063, anodized (≥12μm). |
|
Plate Thickness (Steel/SS) |
W≤150mm: 1.0mm; 150<W≤300: 1.2mm; 300<W≤500: 1.5mm; 500<W≤800: 2.5mm; W>800: 3.0mm |
|
Plate Thickness (Aluminum) |
W≤150mm: 1.2mm; 150<W≤300: 1.5mm; 300<W≤500: 2.0mm; 500<W≤800: 2.5mm; W>800: 3.5mm |
|
Load Performance |
Deflection ≤ Span / 200 at rated load. Meets JB/T 10216-2025 standard. |
|
Accessories |
90° bends, tees, crosses, reducers, end caps, full cover plates, splice plates, grounding clips, bolts, brackets, drop rods |
