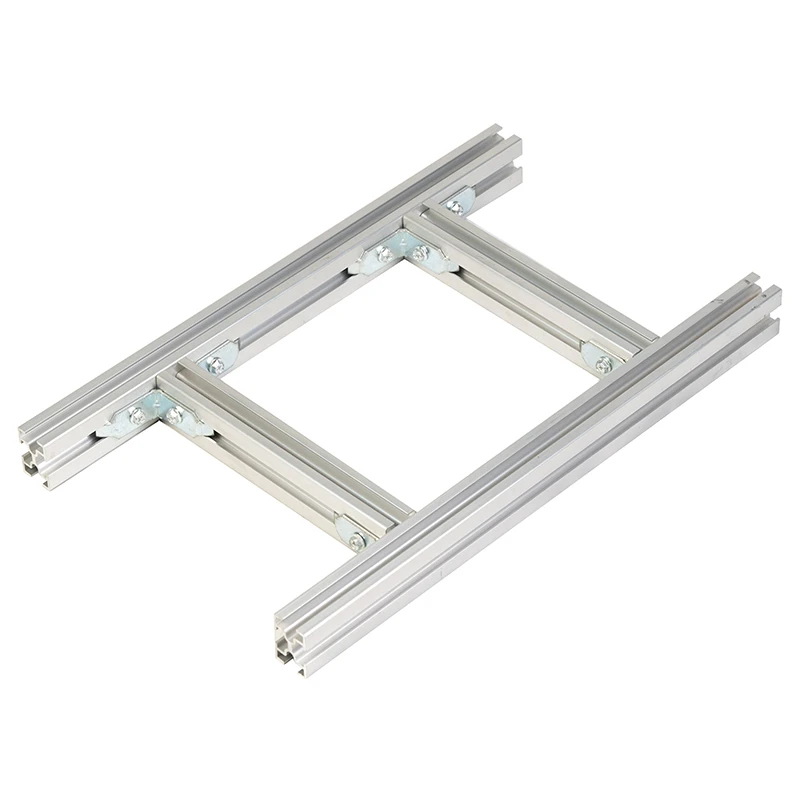

This is not a bent or folded ladder. This ladder is extruded. The aluminum is pushed through a die. The die gives it a precise shape. The cross-section is perfect from end to end. The side rails are straight. The shape is consistent. The ladder does not warp or twist. Our Aluminum Extruded Cable Ladder is made with this process. It gives you a product that is perfectly straight and dimensionally accurate.
Stronger and Lighter Than Bent Aluminum
The extrusion process makes the ladder stronger. The material grain follows the shape of the profile. This gives the ladder excellent strength. It can carry heavy loads without bending. It is also lightweight. The extrusion process uses less material than bending. This makes the ladder cost-effective. The surface is smooth and uniform. The finish is consistent. The anodized coating bonds well to the extruded surface. This gives you long-lasting corrosion protection.
Used in Long Straight Runs
The Aluminum Extruded Cable Ladder is ideal for long straight runs. It is common in tunnels and pipe galleries. It is used in large industrial facilities. It is used in airport baggage handling systems. The perfect straightness of the ladder makes it easy to install. Sections fit together precisely. The ladder is available in standard widths and heights. Custom profiles are also available. All accessories match the extruded profile. Splice plates, brackets, and hangers are all made to fit precisely. Our 2-year warranty covers everything.
Product Specifications
|
Parameter |
Specifications / Options |
|
Width |
50, 100, 150, 200, 250, 300, 400, 500, 600, 800, 1000mm (custom up to 1200mm) |
|
Side Height |
25, 50, 100, 150, 200mm |
|
Standard Length |
2000mm, customizable to 3000/4000/6000mm |
|
Structure |
Extruded aluminum ladder. Precision cross-section. Perfect straightness. No warping or twisting. |
|
Material & Finish |
6063-T5 Aluminum: Extruded profile. Anodized (≥12μm), salt spray ≥480h. 6061-T6 High-Strength Aluminum: For heavy loads and long spans. Optional fluorocarbon coating. |
|
Plate Thickness |
W≤150mm: 1.2mm; 150<W≤300: 1.5mm; 300<W≤500: 2.0mm; 500<W≤800: 2.5mm; W>800: 3.5mm |
|
Dimensional Accuracy |
Cross-section tolerance ≤ ±0.1mm. Perfect straightness for easy installation. |
|
Load Performance |
Deflection ≤ Span / 200 at rated load. Meets JB/T 10216-2025 standard. |
|
Accessories |
Splice plates, bends, tees, crosses, reducers, end caps, grounding clips, aluminum-specific bolts, brackets, drop rods. All accessories match the extruded profile. |
