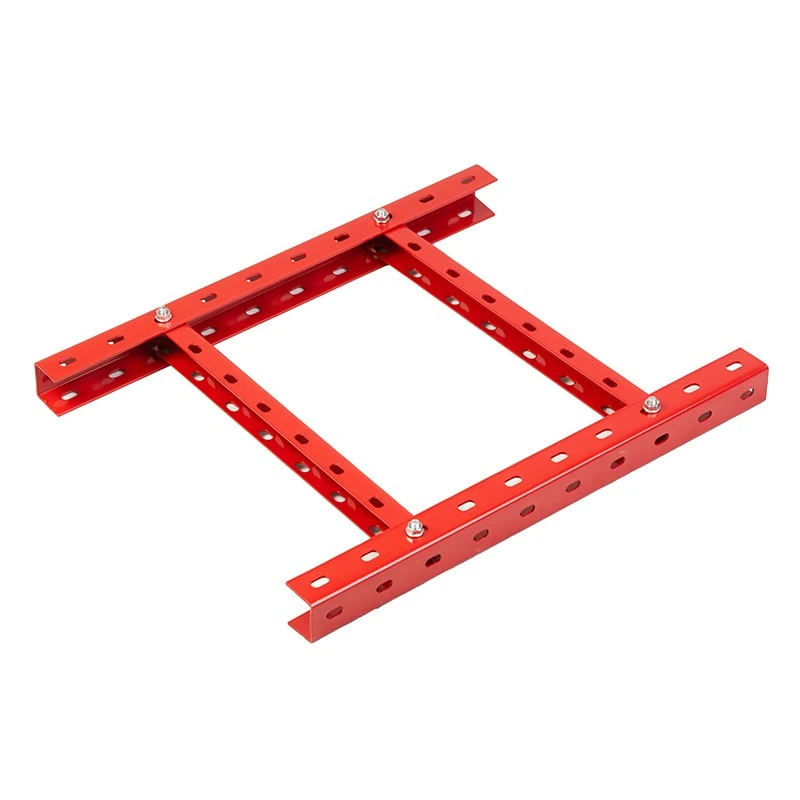

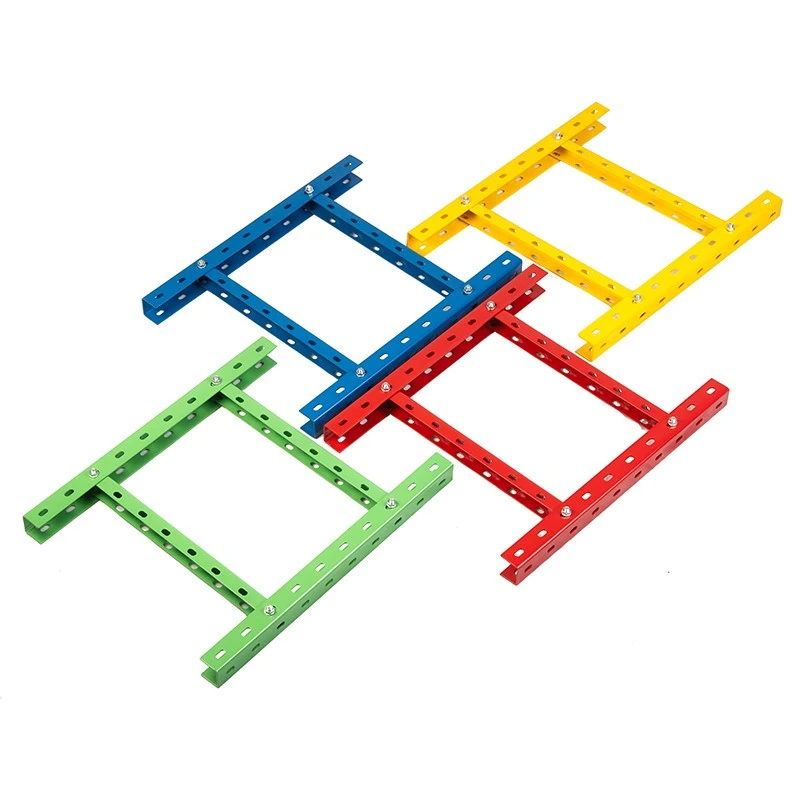

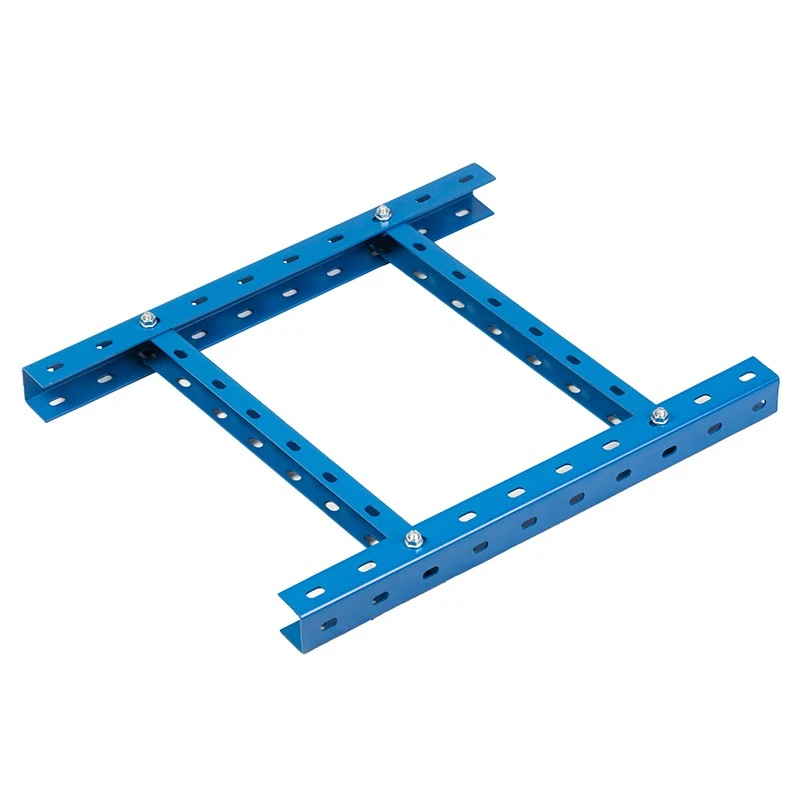

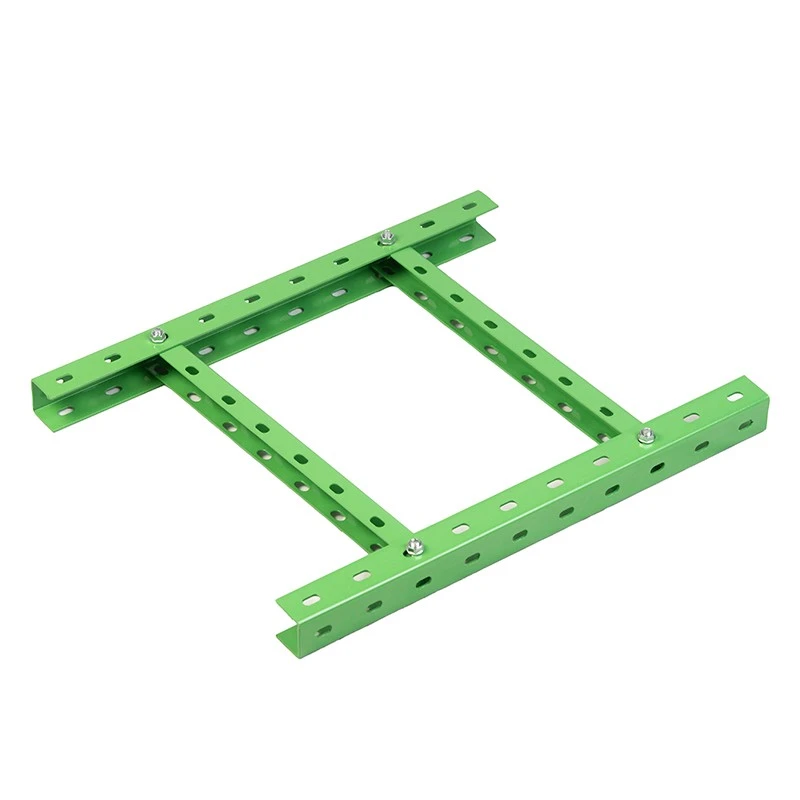

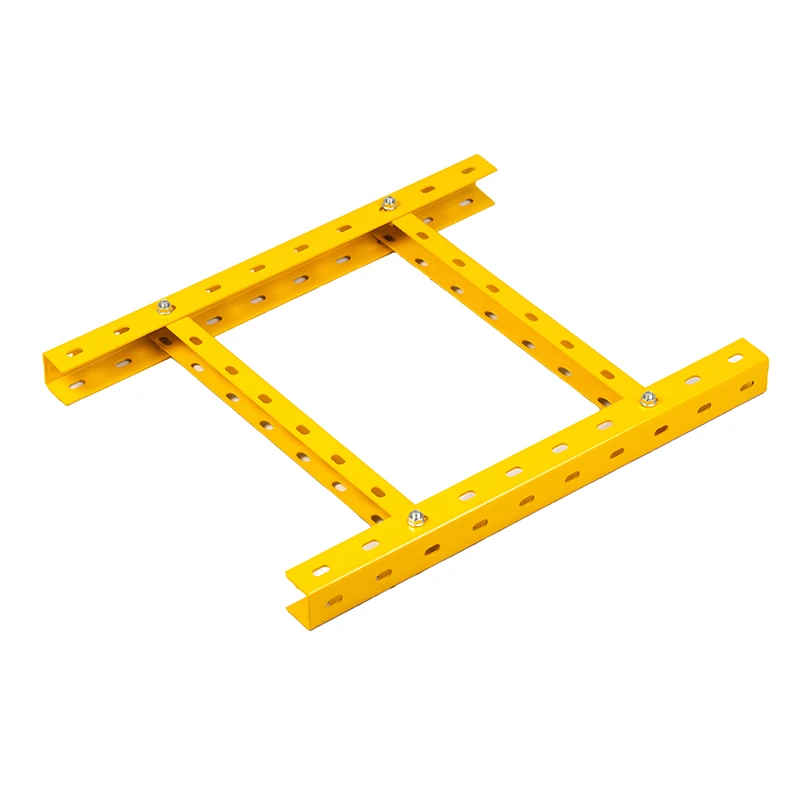

Communication cables are different from power cables. They are smaller. They are more sensitive. They need careful handling. Our Telecom Cable Ladder is designed for these cables. The ladder has a narrower width. The rungs are closer together. The small cables do not slip through. The ladder provides a stable platform for telecom and data cables. It is perfect for telephone exchanges, data centers, and communication rooms.
Open Design for Easy Cable Management
The ladder design gives you good access to the cables. You can see every cable. You can trace any cable from end to end. This is important in telecom applications. You need to add new cables. You need to remove old cables. You need to make changes without disturbing the existing cables. The open ladder design makes this easy. The cables are also well-ventilated. They stay cool. This is important for network equipment that runs 24 hours a day, 7 days a week.
Available in Steel and Aluminum
The Telecom Cable Ladder is available in steel and aluminum. Steel is stronger and more affordable. It works well in most indoor applications. Aluminum is lighter and resists corrosion. It is preferred in damp areas and coastal locations. Both materials are available with different finishes. Powder coating is standard for indoor steel. Hot-dip galvanizing is for outdoor steel. Anodizing is standard for aluminum. All accessories match the material and finish. Our 2-year warranty covers everything.
Product Specifications
|
Parameter |
Specifications / Options |
|
Width |
50, 100, 150, 200, 250, 300, 400, 500, 600, 800, 1000mm (custom up to 1200mm) |
|
Side Height |
25, 50, 100, 150, 200mm |
|
Standard Length |
2000mm, customizable to 3000/4000/6000mm |
|
Structure |
Ladder style with closer rung spacing for small cables. Open design for visibility and access. |
|
Material & Finish |
Q235 Steel: Powder coating (≥60μm) or Hot-dip galvanized (≥65μm, ≥480h salt spray). Aluminum: 6063, anodized (≥12μm). |
|
Plate Thickness (Steel) |
W≤150mm: 1.0mm; 150<W≤300: 1.2mm; 300<W≤500: 1.5mm; 500<W≤800: 2.5mm; W>800: 3.0mm |
|
Plate Thickness (Aluminum) |
W≤150mm: 1.2mm; 150<W≤300: 1.5mm; 300<W≤500: 2.0mm; 500<W≤800: 2.5mm; W>800: 3.5mm |
|
Load Performance |
Deflection ≤ Span / 200 at rated load. Meets JB/T 10216-2025 standard. |
|
Accessories |
90° bends, tees, crosses, reducers, end caps, splice plates, grounding clips, bolts, brackets, drop rods. All accessories match the tray material and finish. |
