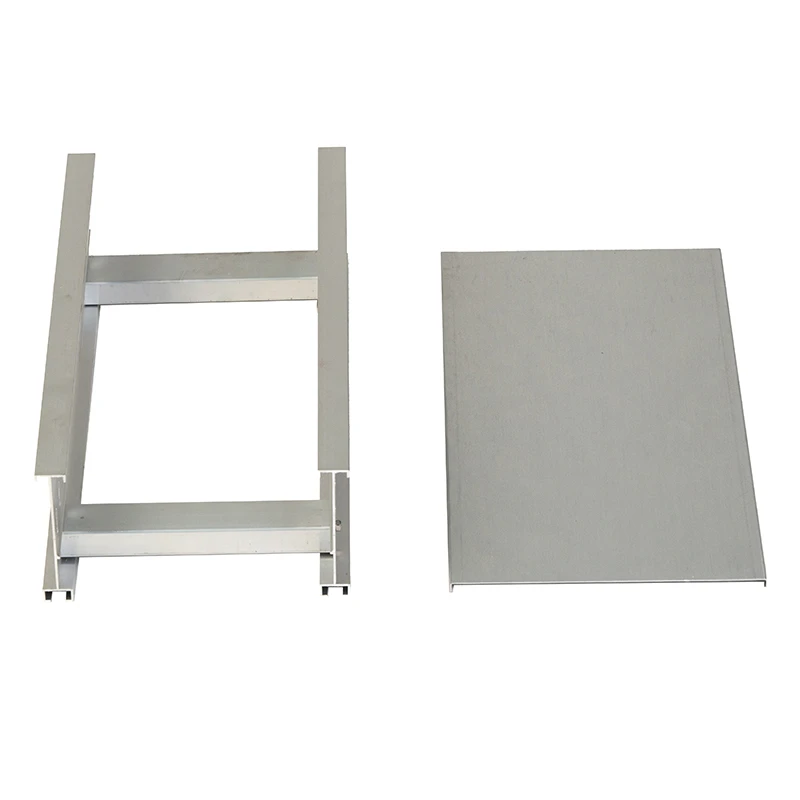

The Aluminum Ladder Tray is our most straightforward ladder product. It is a ladder tray. It is made from aluminum. It is simple. It is strong. It is lightweight. This is the tray you choose when you need a reliable ladder tray without any special features. It does its job well. It supports your cables. It provides good ventilation. It will not rust.
Standard Design with Quality Construction
This tray follows the standard ladder design. The side rails are straight aluminum. The rungs are welded between the rails. The rung spacing is 300mm. This is the standard spacing for ladder trays. The tray is rigid and stable. It carries its rated load without sagging. We test every batch. The deflection stays under 1/200 of the span. The tray meets all standard requirements. It is a dependable product for any project.
A Cost-Effective Choice for Many Applications
The Aluminum Ladder Tray is a cost-effective choice. Aluminum is more expensive than steel. But it lasts longer in many environments. It does not rust. It does not need painting. It does not need maintenance. Over the life of the project, aluminum can be the more affordable option. This tray is used in many applications. It works in factories, warehouses, and commercial buildings. It works in coastal areas and humid environments. It works indoors and outdoors. All accessories match the tray material. Our 2-year warranty covers everything.
Product Specifications
|
Parameter |
Specifications / Options |
|
Width |
50, 100, 150, 200, 250, 300, 400, 500, 600, 800, 1000mm (custom up to 1200mm) |
|
Side Height |
25, 50, 100, 150, 200mm |
|
Standard Length |
2000mm, customizable to 3000/4000/6000mm |
|
Structure |
Standard ladder style. Aluminum side rails and rungs. Rung spacing: 300mm. Welded construction. |
|
Material & Finish |
6063 Aluminum: Anodized (≥12μm), salt spray ≥480h. Optional fluorocarbon coating for extreme outdoor conditions. |
|
Plate Thickness |
W≤150mm: 1.2mm; 150<W≤300: 1.5mm; 300<W≤500: 2.0mm; 500<W≤800: 2.5mm; W>800: 3.5mm |
|
Load Performance |
Deflection ≤ Span / 200 at rated load. Meets JB/T 10216-2025 standard. |
|
Accessories |
90° bends, tees, crosses, reducers, end caps, splice plates, grounding clips, aluminum-specific bolts, brackets, drop rods |
