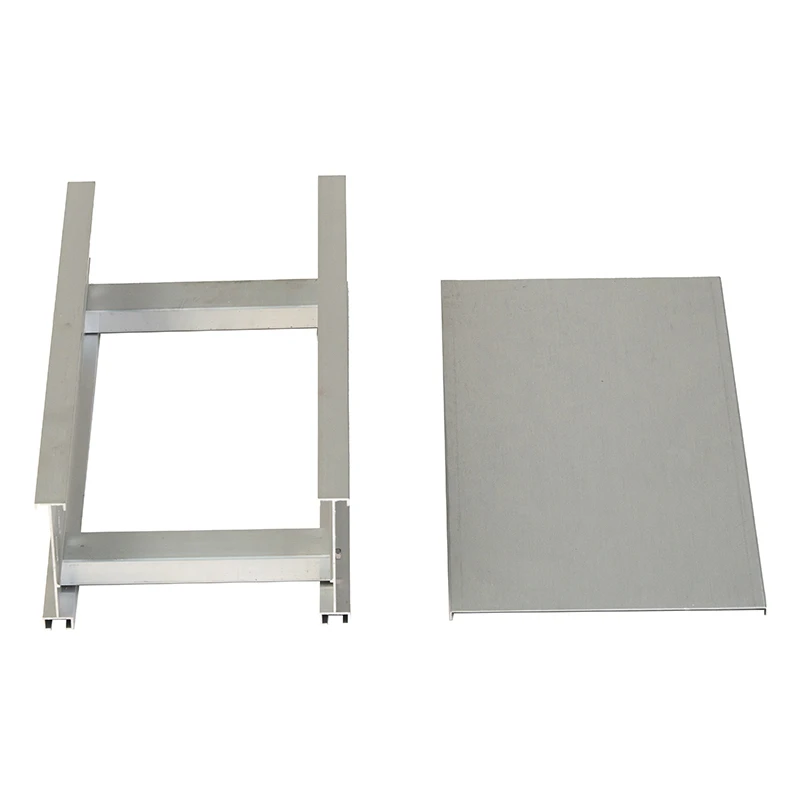

This is our standard ladder tray. But it is made from aluminum. It has the same ladder design you already know. The side rails are straight. The rungs go across. The design is open for ventilation. The cables are easy to see and access. The difference is the material. Aluminum does not rust. Aluminum is lightweight. Aluminum lasts longer in wet environments. This is the ladder tray for projects that need corrosion resistance and lighter weight.
Welded Construction for Strength
We build this tray with care. The rungs are welded to the side rails. Each weld is inspected. The welds are strong and smooth. They do not have sharp edges. The rung spacing is 300mm. This is the standard spacing for ladder trays. It provides good support for most cables. The tray is rigid and stable. It carries its rated load without sagging. We test every batch for deflection. The deflection stays under 1/200 of the span. This meets all standard requirements.
A Versatile Tray for Many Projects
The Aluminum Ladder Cable Tray is a versatile product. It works indoors. It works outdoors. It works in wet areas. It works in dry areas. It is used in factories, warehouses, and commercial buildings. It is used in power plants and substations. It is used in solar farms and wind farms. The aluminum construction gives you long life with minimal maintenance. All accessories match the tray material. Bends, tees, crosses, and splice plates are all aluminum. Our 2-year warranty backs every component.
Product Specifications
|
Parameter |
Specifications / Options |
|
Width |
50, 100, 150, 200, 250, 300, 400, 500, 600, 800, 1000mm (custom up to 1200mm) |
|
Side Height |
25, 50, 100, 150, 200mm |
|
Standard Length |
2000mm, customizable to 3000/4000/6000mm |
|
Structure |
Ladder style with aluminum side rails and rungs. Rung spacing: 300mm. Welded construction. |
|
Material & Finish |
6063 Aluminum: Anodized (≥12μm), salt spray ≥480h. 6061-T6 High-Strength Aluminum: For heavy loads. Optional fluorocarbon coating. |
|
Plate Thickness |
W≤150mm: 1.2mm; 150<W≤300: 1.5mm; 300<W≤500: 2.0mm; 500<W≤800: 2.5mm; W>800: 3.5mm |
|
Load Performance |
Deflection ≤ Span / 200 at rated load. Meets JB/T 10216-2025 standard. |
|
Accessories |
90° bends, tees, crosses, reducers, end caps, splice plates, grounding clips, aluminum-specific bolts, brackets, drop rods |
