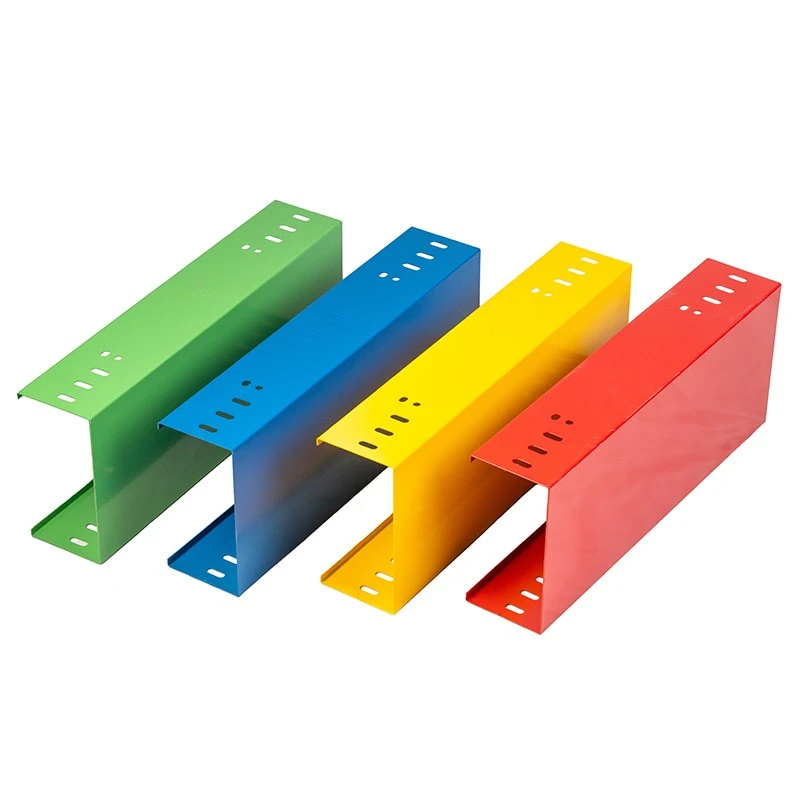

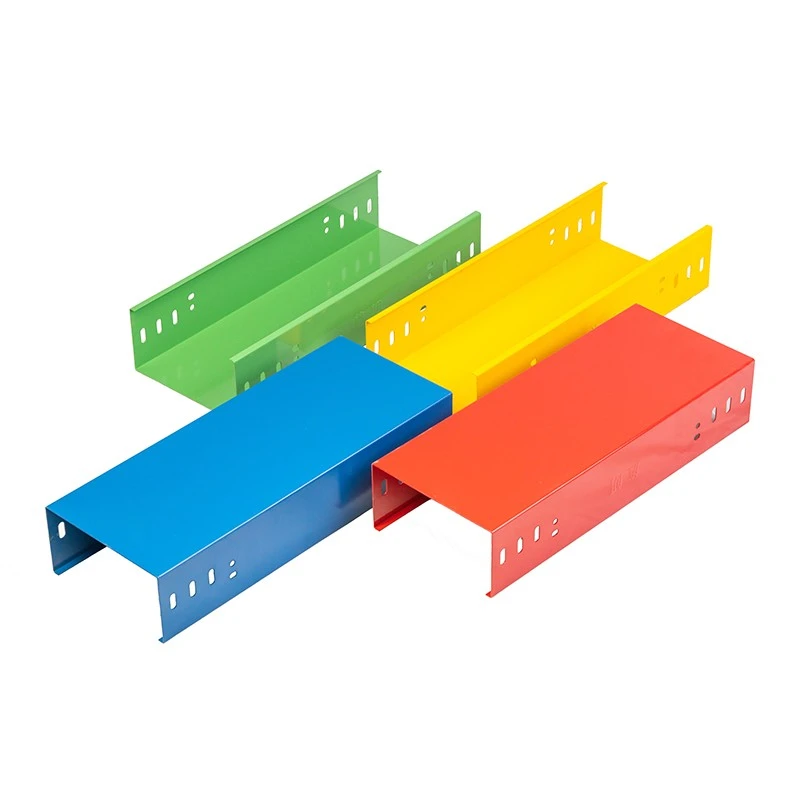

Every building needs basic cable support. Not every project needs special features. Some projects just need a reliable tray that works. Our Electrical Channel Cable Tray is exactly that. It is a simple trough tray. The bottom is flat. The sides are bent up. A cover protects the cables. The interior has rounded corners to protect insulation. This design has been used for decades because it works. It does not need to be complicated.
Built with the Same Quality as Our Specialty Products
Even though this is our basic tray, we build it to high standards. The Q235 steel is from quality mills. The powder coating is 60μm thick. The hot-dip galvanizing is 65μm or thicker. We use the same production lines and quality control as our specialty trays. The tray carries its rated load without sagging. We test for deflection. It stays under 1/200 of the span. The tray is available in standard widths and heights. Lengths are 2000mm as standard. Custom lengths are available upon request.
Choose from Our Material Options
The Electrical Channel Cable Tray comes in multiple materials. Q235 steel is the most cost-effective choice. It works for most indoor and outdoor applications. Stainless steel is for wet or corrosive areas. Aluminum is for weight-sensitive installations. Each material is available with the appropriate finish. The accessories match the tray material. Splice plates, bends, tees, and brackets are all compatible. Our 2-year warranty applies to this product just like our others. If you need a reliable, no-fuss cable tray, this is the right choice.
Product Specifications
|
Parameter |
Specifications / Options |
|
Width |
50, 100, 150, 200, 250, 300, 400, 500, 600, 800, 1000mm (custom up to 1200mm) |
|
Side Height |
25, 50, 100, 150, 200mm |
|
Standard Length |
2000mm, customizable to 3000/4000/6000mm |
|
Structure |
Basic trough style. Flat bottom. Bent side rails. Full cover. Rounded interior corners. Simple and reliable design. |
|
Material & Finish |

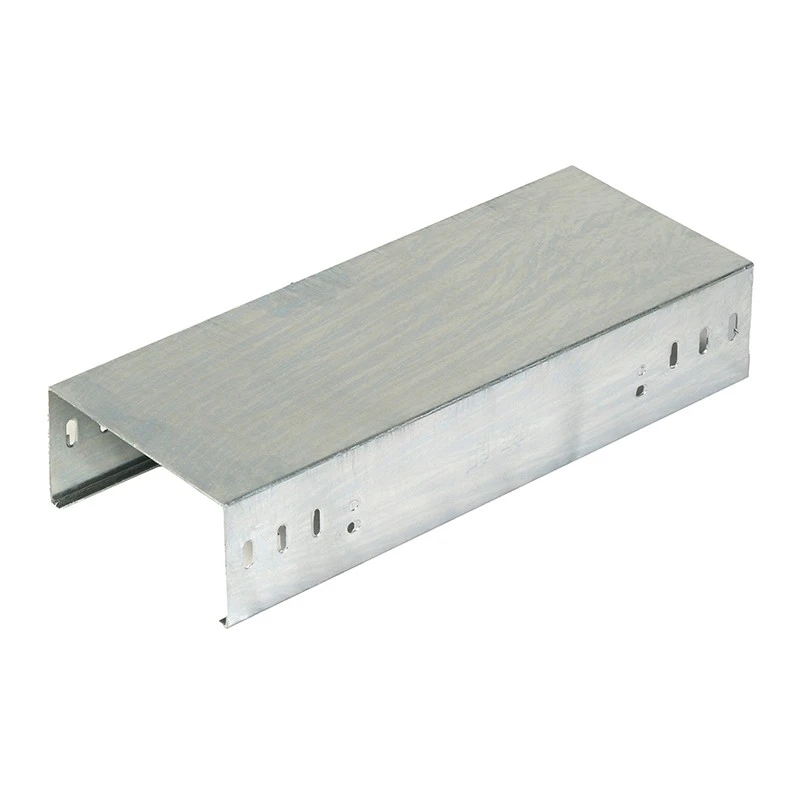

Q235 Carbon Steel: Powder coating (≥60μm) or Hot-dip galvanized (≥65μm, ≥480h salt spray). Stainless Steel: 304 or 316L. Aluminum: 6063, anodized (≥12μm). |
|
Plate Thickness (Steel/SS) |
W≤150mm: 1.0mm; 150<W≤300: 1.2mm; 300<W≤500: 1.5mm; 500<W≤800: 2.5mm; W>800: 3.0mm |
|
Plate Thickness (Aluminum) |
W≤150mm: 1.2mm; 150<W≤300: 1.5mm; 300<W≤500: 2.0mm; 500<W≤800: 2.5mm; W>800: 3.5mm |
|
Load Performance |
Deflection ≤ Span / 200 at rated load. Meets JB/T 10216-2025 standard. |
|
Accessories |
90° bends, tees, crosses, reducers, end caps, full cover plates, splice plates, bolts, brackets, drop rods. All accessories match tray material and thickness. |
