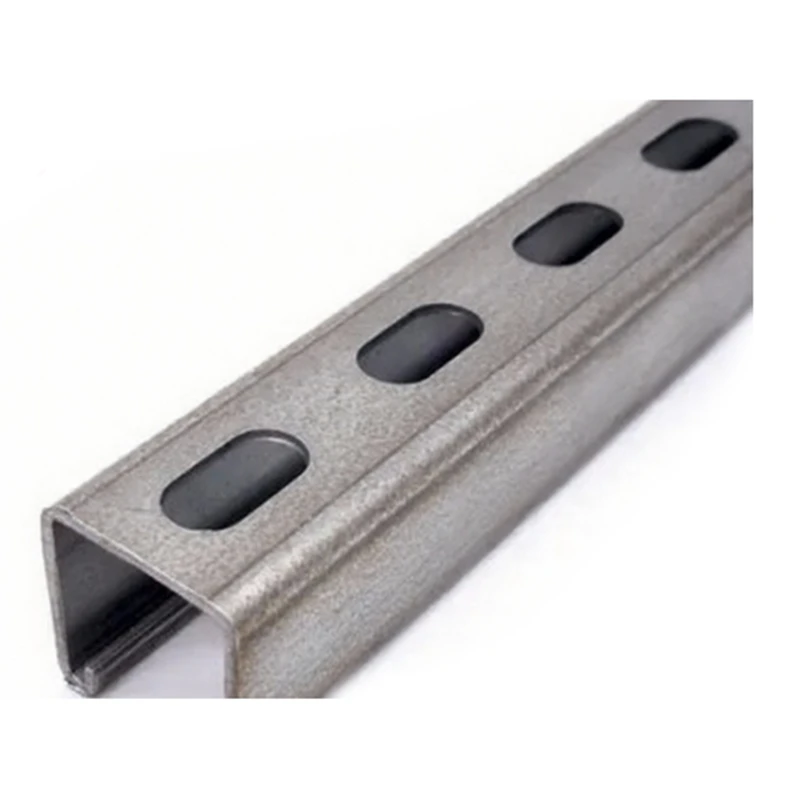

Not every project needs heavy supports. Some projects have small trays. Some have light cables. Our Lightweight C Channel is designed for these applications. The wall thickness is 1.5mm or 2.0mm. The channel is strong enough for light loads. It weighs less than heavier channels. This makes it easier to handle. It also costs less.
Perfect for Small and Medium Projects
The Lightweight C Channel works well for many projects. It is used for small cable trays. It is used for data center overhead supports. It is used for lighting supports. It is used for pipe supports. The channel has pre-punched holes. The holes are spaced 50mm apart. You can adjust the height easily. No need to drill on site. The channel can be cut to any length. It can be bent or shaped if needed.
Available in Galvanized and Powder Coated
We offer the Lightweight C Channel in two finishes. Hot-dip galvanizing is for outdoor and damp areas. The zinc coating is 65μm or thicker. Powder coating is for indoor applications. The coating is 60μm thick. The powder coating looks clean and professional. Both finishes protect the steel from rust. The channel is available in standard sizes. 41x21mm is the most common size. We also offer 41x41mm for slightly heavier loads. All hardware matches the channel finish. Our 2-year warranty covers everything.
Product Specifications
|
Parameter |
Specifications / Options |
|
Common Sizes |
41x21mm, 41x41mm |
|
Wall Thickness |
1.5mm, 2.0mm |
|
Standard Length |
6000mm. Custom lengths available on request. |
|
Structure |
Roll-formed C shape. Pre-punched oval holes at 50mm spacing. Lightweight design for easy handling. |
|
Material & Finish |
Q235B Cold-rolled Steel. Hot-dip galvanized: zinc layer ≥65μm, salt spray ≥480h. Powder coating: epoxy coating ≥60μm. |
|
Load Capacity |
1.5mm: For small trays, data cables, and lighting supports. 2.0mm: For medium trays and light power cable supports. |
|
Accessories |
Spring nuts, T-bolts, bracket connectors, splice plates. All accessories match the channel finish. |
