Some cable runs are very wide. They carry many cables side by side. The tray needs to be wide enough to hold them all. But wide trays bend more easily than narrow ones. The wider the tray, the more leverage the cables have on the center. Our Wide Span Tray handles this problem with a stronger design. We use thicker side rails. We add reinforcing ribs to the bottom. We space the supports closer together when needed. The result is a tray that stays flat across its full width.
Reinforced Bottom and Side Rails

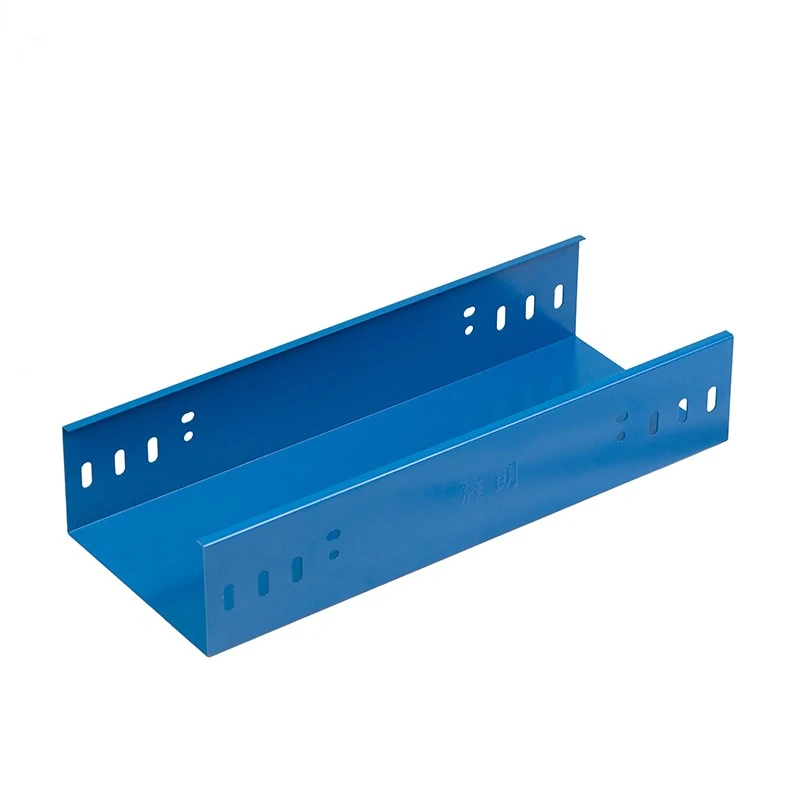

We start with a sturdy base. The bottom plate is solid or perforated, depending on your needs. We add pressed-in stiffening ribs along the length of the tray. These ribs resist bending. The side rails are made from thicker material than standard trays. This gives the tray the rigidity it needs. For perforated versions, we place the holes in a pattern that preserves strength. For spans over 6 meters, we offer optional center supports. These supports reduce deflection. The maximum deflection under full load never exceeds 1/200 of the span. Your cables stay level and supported.
Built for Power Plants and Data Centers

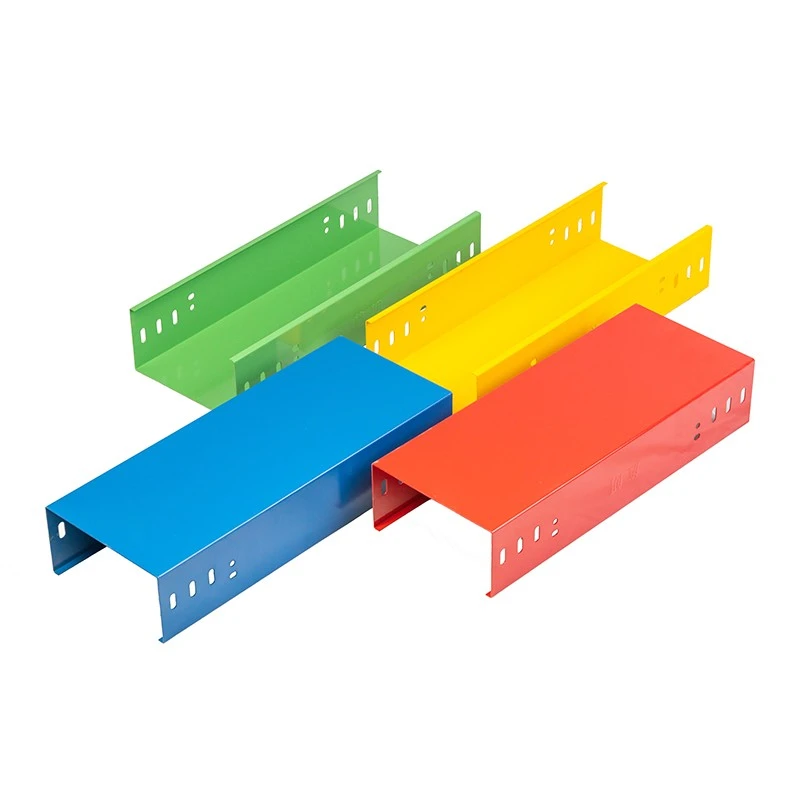

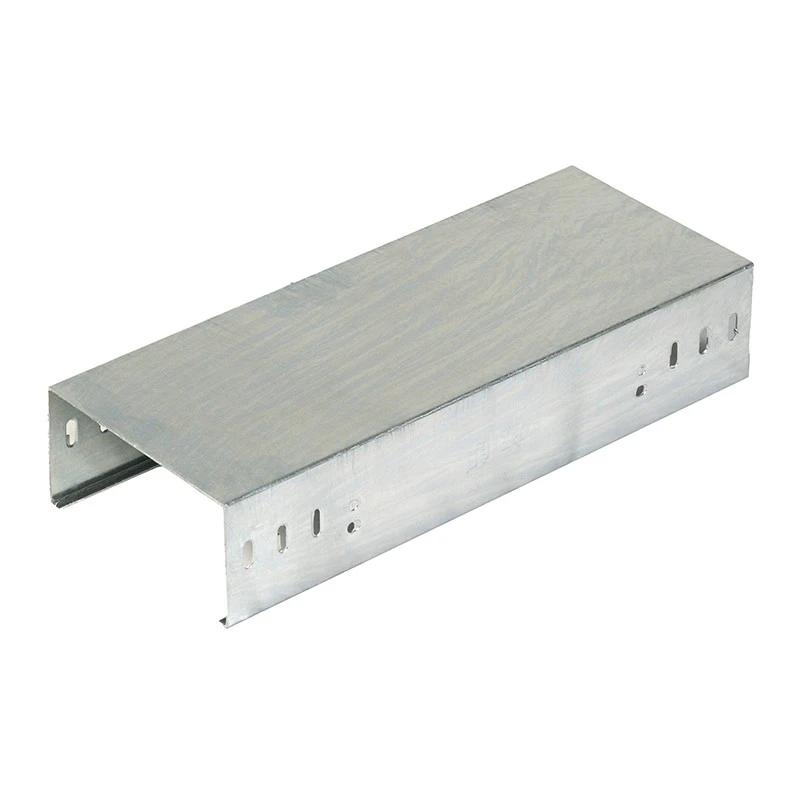

Wide Span Trays are common in power plants, data centers, and large manufacturing facilities. These installations have many cables. We offer materials for every environment. Galvanized steel is the standard for most industrial projects. Powder-coated steel works well indoors. Stainless steel is for wet or corrosive areas. Aluminum is for weight-sensitive applications. All accessories match the main tray in strength and finish. We supply bends, tees, crosses, and support brackets. Everything is built to handle the wide span and heavy load. Our 2-year warranty backs every component.
Product Specifications
|
Parameter |
Specifications / Options |
|
Width |
200, 300, 400, 500, 600, 800, 1000, 1200mm (custom available) |
|
Side Height |
25, 50, 100, 150, 200mm |
|
Standard Length |
2000mm, customizable to 3000/4000/6000mm |
|
Structure |
Tray style with pressed-in stiffening ribs. Solid or perforated bottom. Optional center supports for long spans. |
|
Material & Finish |
Q235 Carbon Steel: Hot-dip galvanized (≥65μm, ≥480h salt spray) or Powder coating (≥60μm). Stainless Steel: 304 or 316L. Aluminum: 6063-T6. |
|
Plate Thickness (Steel/SS) |
W≤150mm: 1.0mm; 150<W≤300: 1.2mm; 300<W≤500: 1.5mm; 500<W≤800: 2.5mm; W>800: 3.0mm |
|
Plate Thickness (Aluminum) |
W≤150mm: 1.2mm; 150<W≤300: 1.5mm; 300<W≤500: 2.0mm; 500<W≤800: 2.5mm; W>800: 3.5mm |
|
Load Performance |
Deflection ≤ Span / 200 at rated load. Optional center supports for spans over 6m. |
|
Accessories |
90° bends, tees, crosses, reducers, end caps, splice plates, brackets, drop rods, center support brackets |
