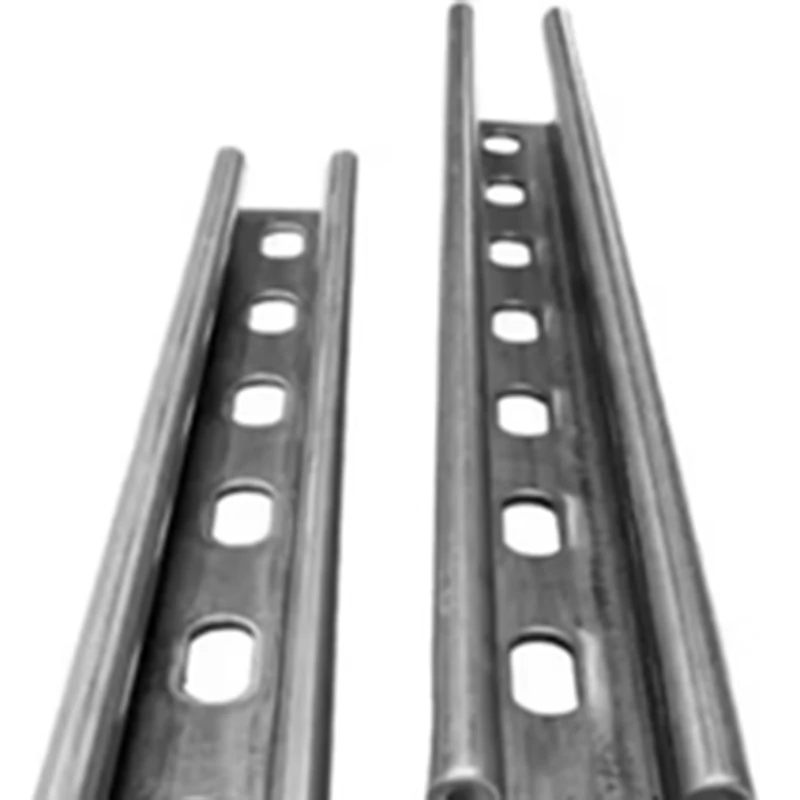

Some projects need extra strength. The cable trays are large. The loads are heavy. The spans are long. Our Heavy Duty C Channel is built for these conditions. The wall thickness is 3.0mm or more. The material is Q235B steel. The channel is hot-dip galvanized. It carries heavy loads without bending. It is the strongest C Channel in our product line.
More Material, More Strength
The Heavy Duty C Channel is thicker than standard channels. Thicker steel means more strength. The channel can support large cable trays. It can support heavy cable bundles. It can be used for floor stands. It can be used for seismic supports. The channel has pre-punched holes. The holes are spaced 50mm apart. You can adjust the position of your supports. The holes are clean and smooth. No sharp edges. No rust because they are galvanized.
Built for Industrial and Infrastructure Projects
The Heavy Duty C Channel is used in large projects. Power plants use it. Industrial facilities use it. Large commercial buildings use it. It is also used for seismic bracing. The channel meets seismic standards. It holds supports securely during earthquakes. We offer the channel in standard sizes. Sizes include 41x41mm, 41x62mm, 41x72mm, and larger. The standard length is 6000mm. We can cut to your required length. All hardware matches the heavy-duty standard. Our 2-year warranty covers everything.
Product Specifications
|
Parameter |
Specifications / Options |
|
Common Sizes |
41x41mm, 41x62mm, 41x72mm. Larger sizes available for columns and seismic frames. |
|
Wall Thickness |
3.0mm standard. Heavier thicknesses available on request. |
|
Standard Length |
6000mm. Custom lengths available on request. |
|
Structure |
Roll-formed C shape. Thicker material for extra strength. Pre-punched oval holes at 50mm spacing. Inward rolled edges. |
|
Material & Finish |
Q235B Cold-rolled Steel. Hot-dip galvanized: zinc layer ≥85μm, single-side zinc weight ≥600g/m². Salt spray ≥600h. |
|
Load Capacity |
Designed for large span trays, heavy cable bundles, floor stands, and seismic bracing systems. Meets seismic design requirements. |
|
Accessories |
Heavy-duty spring nuts, high-strength T-bolts, bracket connectors, seismic connectors, splice plates. All accessories match the heavy-duty standard. |
