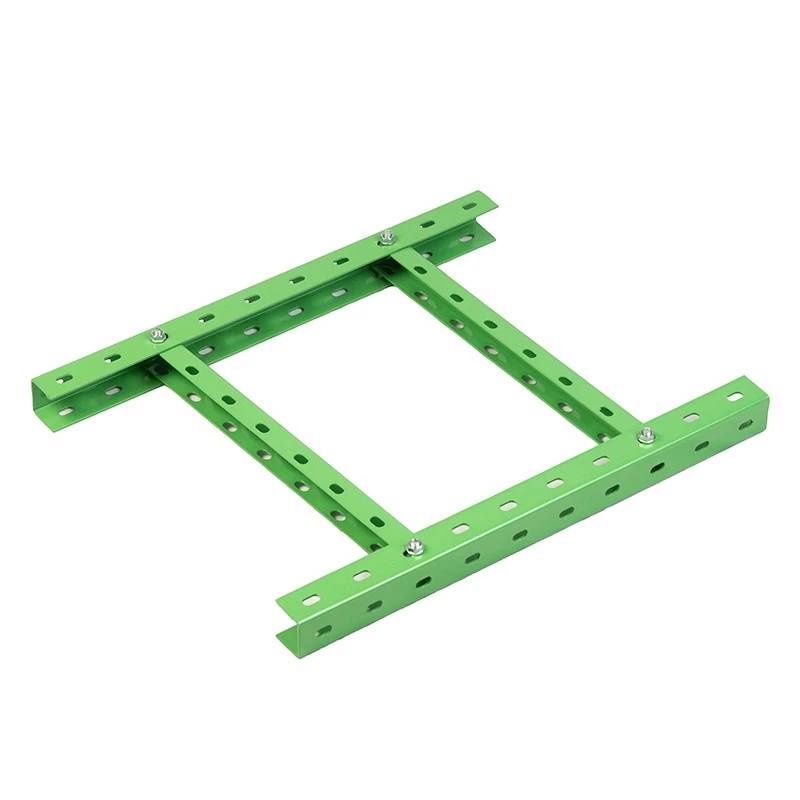

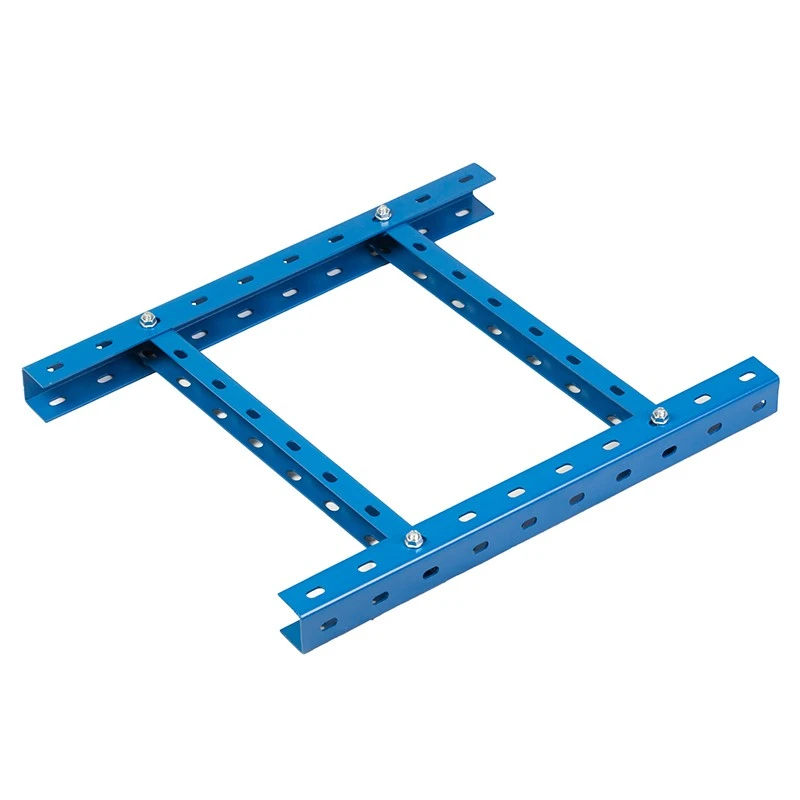

Standard ladder trays have straight side rails. Cables can slide off the sides. This happens when you have many cables. It happens when there is vibration. It happens when the tray is not perfectly level. Our U-Channel Cable Ladder solves this problem. The side rails are shaped like a U. The sides curve upward. They form a small wall. The cables stay inside the tray. They cannot slide off. This simple design makes a big difference in cable security.
Stronger Than Standard Ladders
The U-shape also makes the ladder stronger. The curved sides act like reinforcement. They resist bending and twisting. The ladder stays straight under heavy loads. The rungs are welded between the U-channels. The rung spacing is 300mm. This provides good support for your cables. The ladder is built to last. We test every batch. Under full load, the deflection stays under 1/200 of the span. This meets all industrial standards.
Used in Industrial and Power Applications
The U-Channel Cable Ladder is common in industrial settings. Factories use it. Power plants use it. Large workshops use it. The U-shape is especially useful in areas with vibration. The cables stay in place. They do not work their way to the edge. We offer the ladder in steel, stainless steel, and aluminum. Steel is the most common choice. It is strong and affordable. Stainless steel is for wet or corrosive areas. Aluminum is for weight-sensitive projects. All accessories match the ladder material. Our 2-year warranty covers everything.
Product Specifications
|
Parameter |
Specifications / Options |
|
Width |
50, 100, 150, 200, 250, 300, 400, 500, 600, 800, 1000mm (custom up to 1200mm) |
|
Side Height |
25, 50, 100, 150, 200mm |
|
Standard Length |
2000mm, customizable to 3000/4000/6000mm |
|
Structure |
U-shaped closed side rails. Curved sides prevent cable slippage. Rung spacing: 300mm. Welded construction. |
|
Material & Finish |
Q235 Steel: Powder coating (≥60μm) or Hot-dip galvanized (≥65μm, ≥480h salt spray). Stainless Steel: 304 or 316L. Aluminum: 6063, anodized (≥12μm). |
|
Plate Thickness (Steel/SS) |
W≤150mm: 1.0mm; 150<W≤300: 1.2mm; 300<W≤500: 1.5mm; 500<W≤800: 2.5mm; W>800: 3.0mm |
|
Plate Thickness (Aluminum) |
W≤150mm: 1.2mm; 150<W≤300: 1.5mm; 300<W≤500: 2.0mm; 500<W≤800: 2.5mm; W>800: 3.5mm |
|
Load Performance |
Deflection ≤ Span / 200 at rated load. Meets JB/T 10216-2025 standard. |
|
Accessories |
90° bends, tees, crosses, reducers, end caps, U-channel splice plates, grounding clips, bolts, brackets, drop rods. All accessories match the U-channel design. |
