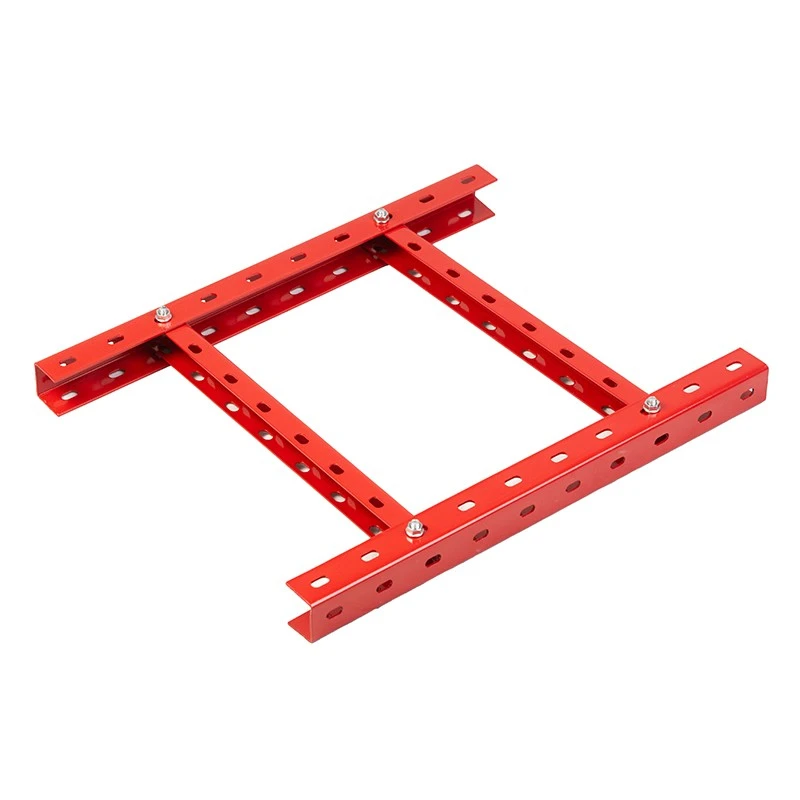

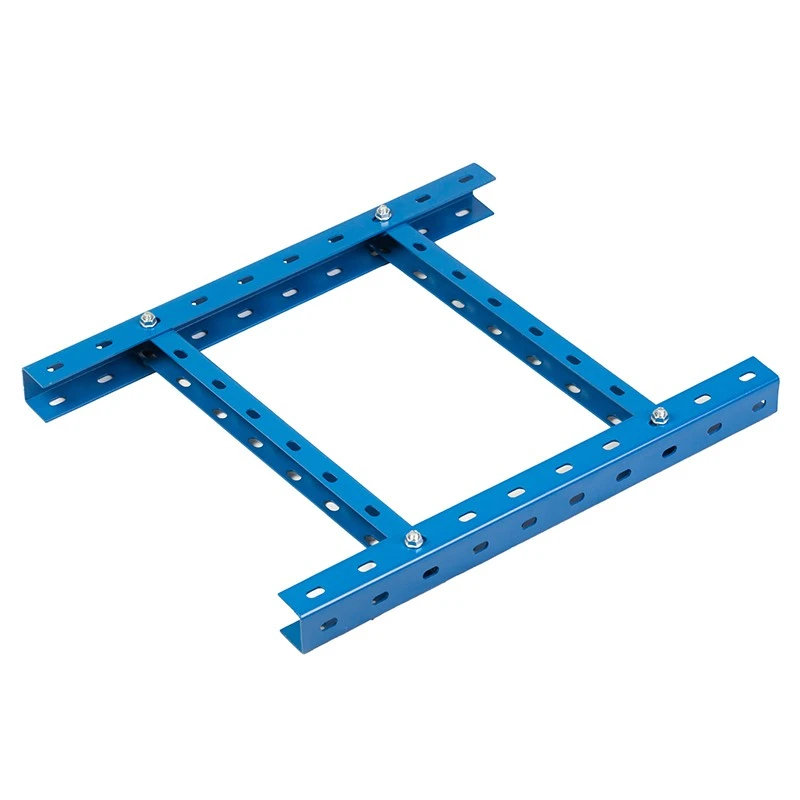

Steel is strong. Everyone knows that. Steel ladder trays carry heavy loads. They last for many years. But standard steel ladders have straight sides. Cables can slide off. Our U-Shaped Steel Cable Ladder combines steel strength with the U-shape design. The sides curve up. They hold the cables in. The cables stay where you put them. This is a simple improvement that makes a big difference.
Built for Heavy Loads and Long Spans
This ladder is made from Q235 steel. The material is strong and reliable. The U-shaped sides are formed from thick steel plate. The rungs are welded between the sides. Each weld is inspected. The rung spacing is 300mm. The ladder can handle heavy cable bundles. It can span long distances without sagging. We test every batch. Under full load, the deflection stays under 1/200 of the span. This meets all industrial standards. The ladder is built for demanding applications.
Finish Options for Every Environment

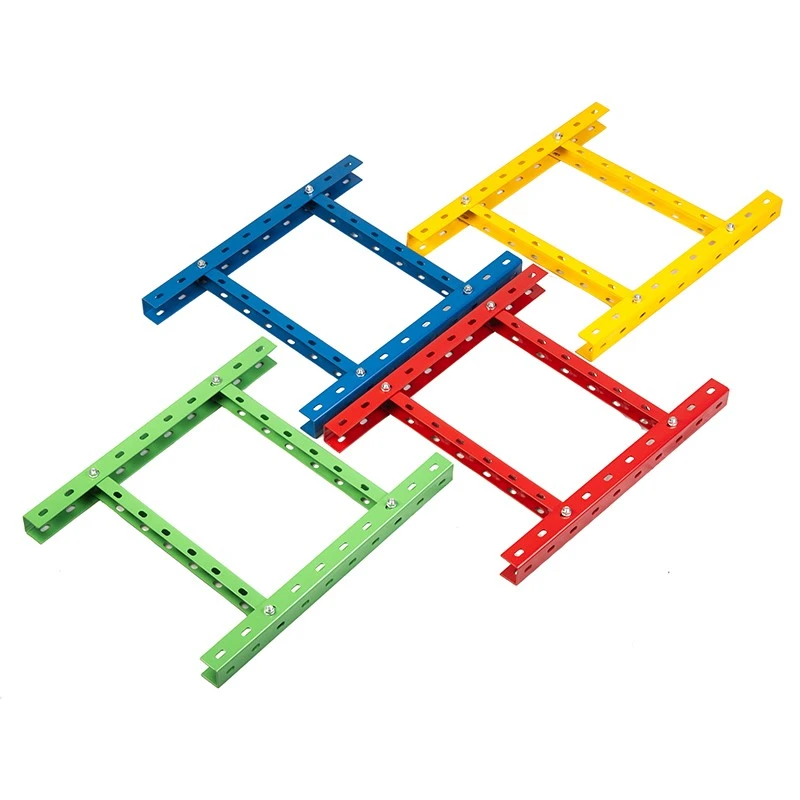

We offer the U-Shaped Steel Cable Ladder in several finishes. Powder coating is the standard indoor finish. The coating is 60μm thick. It resists dust and scratches. Hot-dip galvanizing is for outdoor use. The zinc coating is 65μm or thicker. It resists rust and weathering. We also offer stainless steel for wet and corrosive areas. All accessories match the ladder finish. Splice plates, brackets, and bolts all have the same protection. Our 2-year warranty backs every component.
Product Specifications
|
Parameter |
Specifications / Options |
|
Width |
50, 100, 150, 200, 250, 300, 400, 500, 600, 800, 1000mm (custom up to 1200mm) |
|
Side Height |
25, 50, 100, 150, 200mm |
|
Standard Length |
2000mm, customizable to 3000/4000/6000mm |
|
Structure |
U-shaped closed side rails. Curved sides prevent cable slippage. Rung spacing: 300mm. Welded steel construction. |
|
Material & Finish |
Q235 Steel: Powder coating (≥60μm) or Hot-dip galvanized (≥65μm, ≥480h salt spray). Stainless Steel: 304 or 316L. |
|
Plate Thickness (Steel) |
W≤150mm: 1.0mm; 150<W≤300: 1.2mm; 300<W≤500: 1.5mm; 500<W≤800: 2.5mm; W>800: 3.0mm |
|
Load Performance |
Deflection ≤ Span / 200 at rated load. Meets JB/T 10216-2025 standard. |
|
Accessories |
90° bends, tees, crosses, reducers, end caps, U-channel splice plates, grounding clips, bolts, brackets, drop rods |
