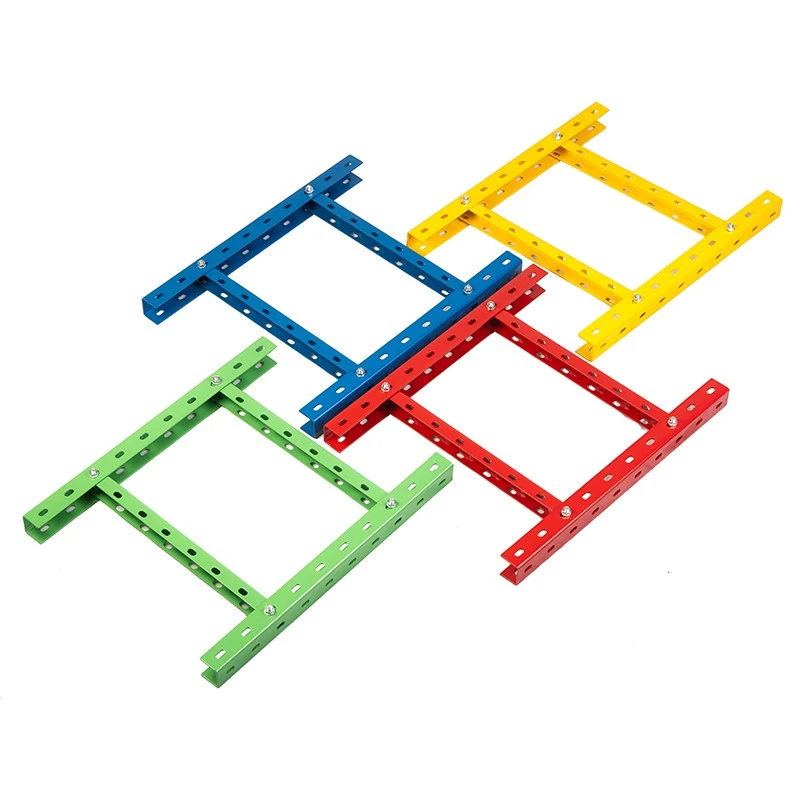

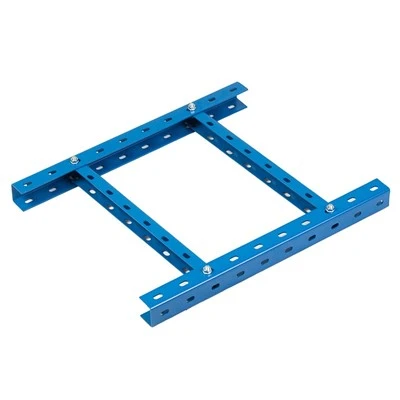

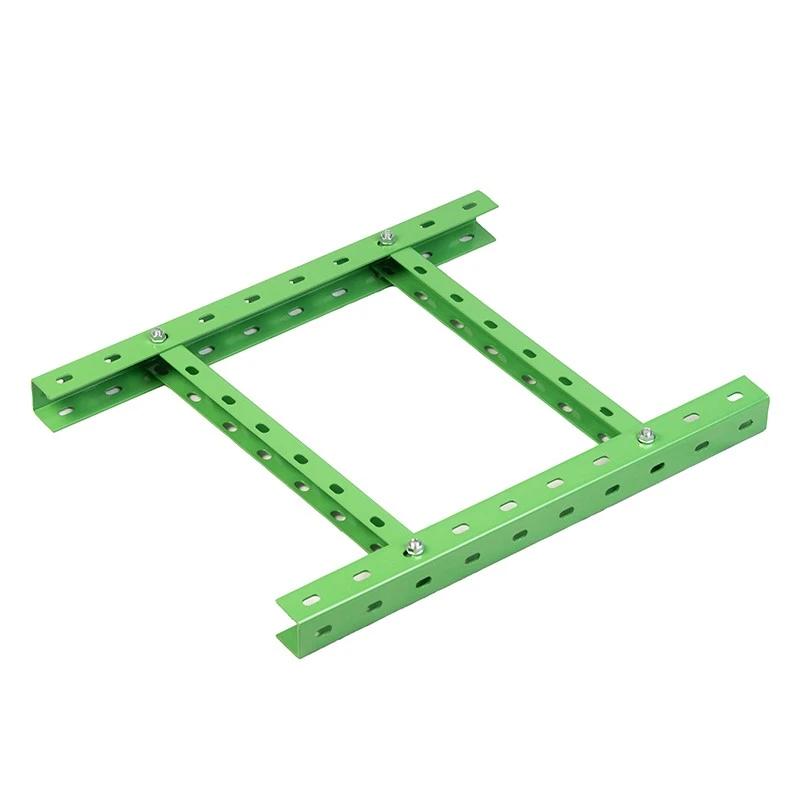

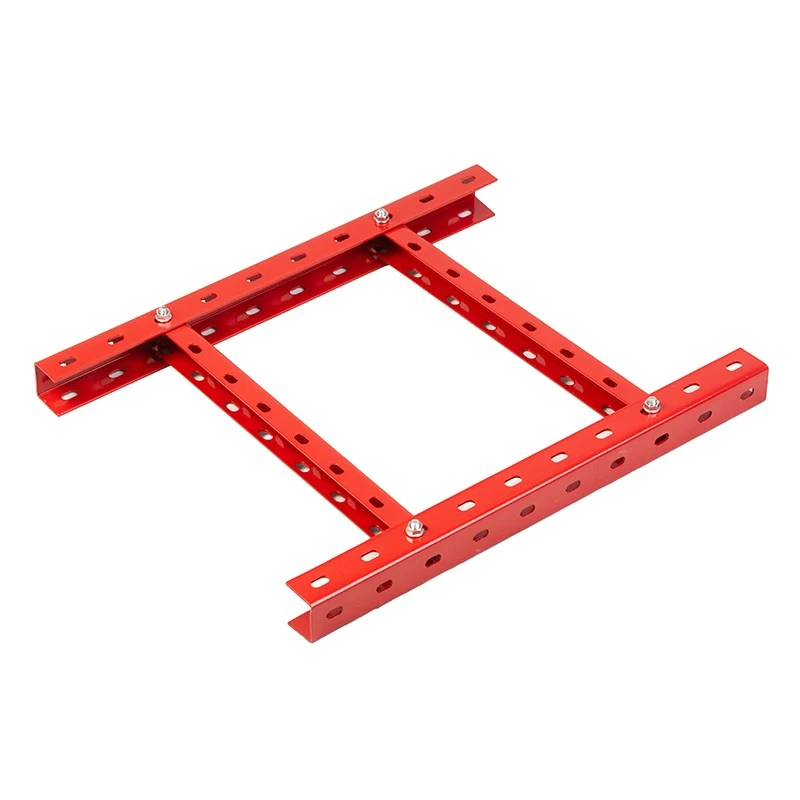

Communication cables are delicate. They are small. They can slip through gaps. They can slide off flat trays. Our Telecom U-Channel Cable Ladder is designed for these cables. The U-shaped sides keep the cables contained. They cannot slide off. The rungs are closer together. Small cables do not sag between rungs. The ladder provides a stable platform for your telecom and data cables.
Tailored for Telecom Applications
This ladder is built for communication rooms and data centers. The width is optimized for telecom cables. The rung spacing is closer than standard ladders. The U-shape gives extra security. The ladder is also well-ventilated. The open design keeps cables cool. The ladder is easy to install. Sections fit together precisely. The ladder is also easy to modify. You can add new cables without disturbing the old ones. This is important in busy data centers.
Available in Steel and Aluminum
We offer the Telecom U-Channel Cable Ladder in steel and aluminum. Steel is stronger and more affordable. It is the standard choice for most projects. Aluminum is lighter and resists corrosion. It is preferred in coastal areas and damp environments. Both materials are available with appropriate finishes. Steel can be powder coated or galvanized. Aluminum is anodized. All accessories match the tray material. Our 2-year warranty covers everything.
Product Specifications
|
Parameter |
Specifications / Options |
|
Width |
50, 100, 150, 200, 250, 300, 400, 500, 600, 800, 1000mm (custom up to 1200mm) |
|
Side Height |
25, 50, 100, 150, 200mm |
|
Standard Length |
2000mm, customizable to 3000/4000/6000mm |
|
Structure |
U-shaped side rails with closer rung spacing. Prevents small cables from slipping off or sagging. |
|
Material & Finish |
Q235 Steel: Powder coating (≥60μm) or Hot-dip galvanized (≥65μm, ≥480h salt spray). Aluminum: 6063, anodized (≥12μm). |
|
Plate Thickness (Steel) |
W≤150mm: 1.0mm; 150<W≤300: 1.2mm; 300<W≤500: 1.5mm; 500<W≤800: 2.5mm; W>800: 3.0mm |
|
Plate Thickness (Aluminum) |
W≤150mm: 1.2mm; 150<W≤300: 1.5mm; 300<W≤500: 2.0mm; 500<W≤800: 2.5mm; W>800: 3.5mm |
|
Load Performance |
Deflection ≤ Span / 200 at rated load. Meets JB/T 10216-2025 standard. |
|
Accessories |
90° bends, tees, crosses, reducers, end caps, U-channel splice plates, grounding clips, bolts, brackets, drop rods |
