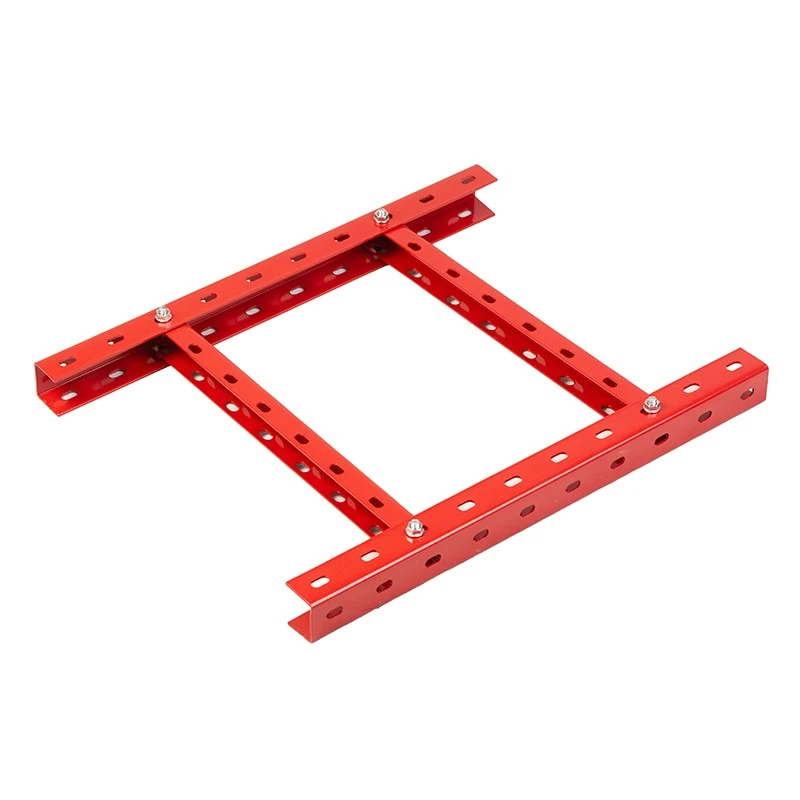

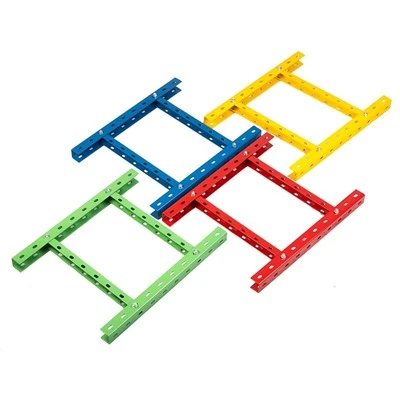

Data centers have special needs. There are many cables. The cables change frequently. New equipment is added. Old equipment is removed. The tray system must be flexible. Our Data Center U-Shaped Cable Tray is designed for these conditions. The U-shape keeps cables contained. The open design provides cooling. The tray is easy to modify. It is the perfect choice for busy data centers.
Cooling and Containing in One Tray
The U-shaped sides do two things. They keep cables from sliding off. They also add strength to the tray. The sides curve up. They hold the cables securely. The bottom has perforations. Heat escapes through the holes. Cables stay cool. This is important in data centers. Heat is the enemy of network equipment. The tray also allows for easy cable routing. You can add cables. You can remove cables. You can change paths. The tray adapts to your needs.
Used by Major Data Center Operators
We have supplied the Data Center U-Shaped Cable Tray to many projects. Large data centers use it. Corporate server rooms use it. University network centers use it. The tray is available in steel and aluminum. Steel is the standard choice. Aluminum is preferred for lighter weight. Both materials are available with powder coating or anodizing. All accessories match the tray material. The tray is easy to install. It is easy to maintain. Our 2-year warranty backs every component.
Product Specifications
|
Parameter |
Specifications / Options |
|
Width |
50, 100, 150, 200, 250, 300, 400, 500, 600, 800, 1000mm (custom up to 1200mm) |
|
Side Height |
25, 50, 100, 150, 200mm |
|
Standard Length |
2000mm, customizable to 3000/4000/6000mm |
|
Structure |
U-shaped side rails with perforated bottom. Curved sides prevent cable slippage. Open design for cooling. |
|
Material & Finish |
Q235 Steel: Powder coating (≥60μm) or Hot-dip galvanized (≥65μm, ≥480h salt spray). Aluminum: 6063, anodized (≥12μm). |
|
Plate Thickness (Steel) |
W≤150mm: 1.0mm; 150<W≤300: 1.2mm; 300<W≤500: 1.5mm; 500<W≤800: 2.5mm; W>800: 3.0mm |
|
Plate Thickness (Aluminum) |
W≤150mm: 1.2mm; 150<W≤300: 1.5mm; 300<W≤500: 2.0mm; 500<W≤800: 2.5mm; W>800: 3.5mm |
|
Load Performance |
Deflection ≤ Span / 200 at rated load. Meets JB/T 10216-2025 standard. |
|
Accessories |
90° bends, tees, crosses, reducers, end caps, U-channel splice plates, grounding clips, bolts, brackets, drop rods |
