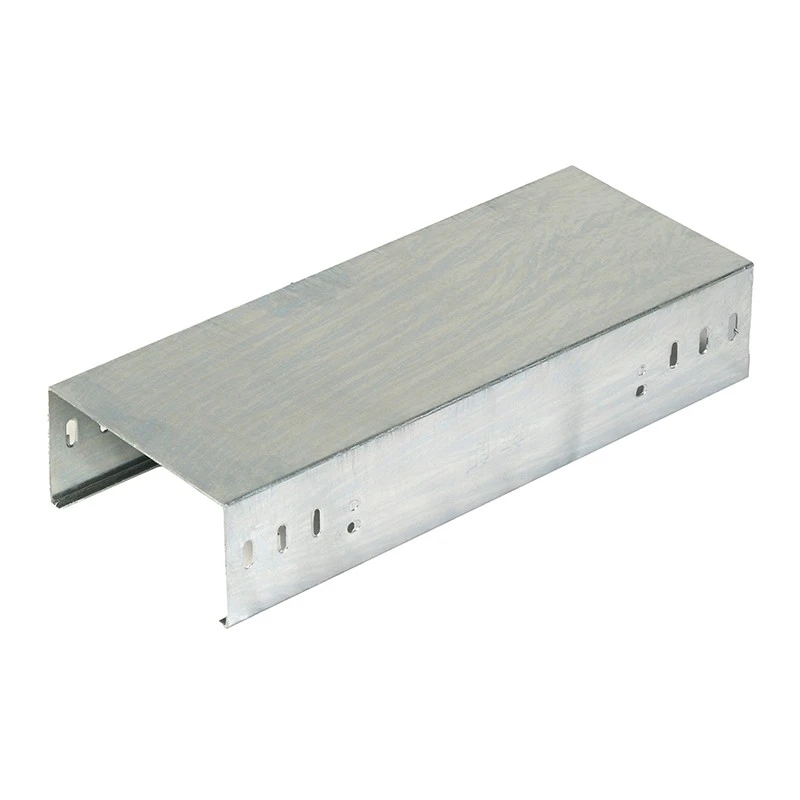

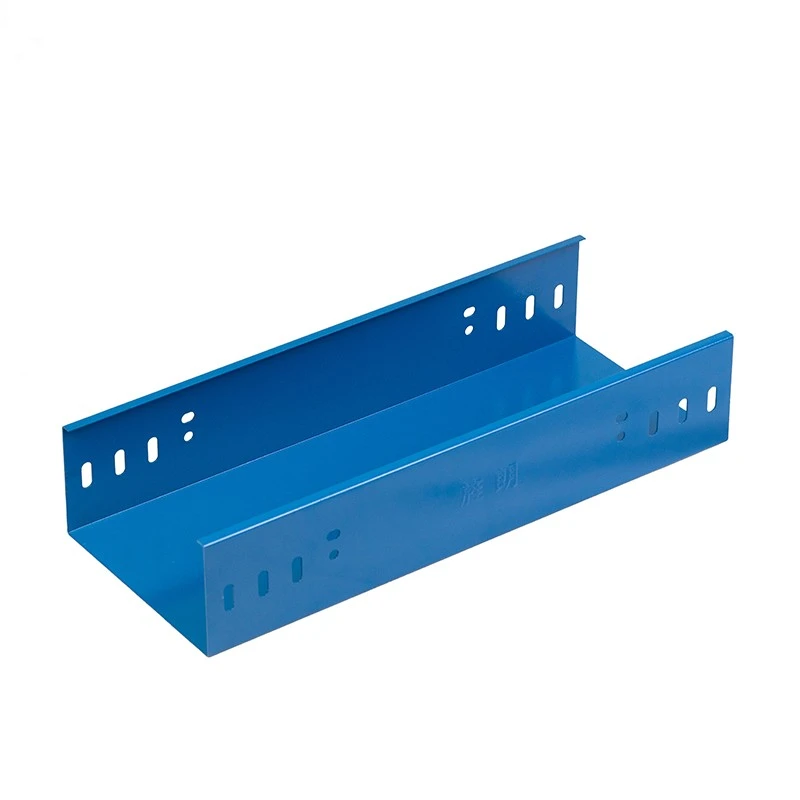

Every electrician knows this tray. It is simple. It works. It does not cost too much. Our Cable Channel Tray is the basic trough style. The bottom is flat steel. The sides are bent upward. You add a cover on top. The inside has rounded corners. This protects the cable insulation. The tray holds cables securely. It keeps them clean and organized. It is the tray you choose when you do not need anything special. It just needs to work.
Quality Materials at a Fair Price
We use Q235 steel for this tray. It is strong and reliable. The powder coating is 60μm thick. This protects the steel from rust and scratches. The coating also looks professional. For outdoor use, we offer hot-dip galvanizing. The zinc layer is 65μm or thicker. This passes 480 hours of salt spray testing. The tray comes in many widths. Standard sizes range from 50mm to 1200mm. Heights range from 25mm to 200mm. The standard length is 2000mm. We can make longer sections if your project needs them.
A Tray You Can Count On
The Cable Channel Tray does not have fancy features. It does not need them. It does its job well. We test every batch for deflection. Under full load, the tray bends less than 1/200 of the span. This meets all standard requirements. The tray is available in stainless steel for wet areas. Aluminum is available for weight-sensitive projects. All accessories match the tray material. Splice plates, bolts, brackets, and drop rods are all made to the same standard. Our 2-year warranty covers everything. This is the tray that gets the job done.
Product Specifications
|
Parameter |
Specifications / Options |
|
Width |
50, 100, 150, 200, 250, 300, 400, 500, 600, 800, 1000mm (custom up to 1200mm) |
|
Side Height |
25, 50, 100, 150, 200mm |
|
Standard Length |
2000mm, customizable to 3000/4000/6000mm |
|
Structure |
Basic trough style. Flat bottom. Bent side rails. Full cover. Rounded interior corners. |
|
Material & Finish |
Q235 Carbon Steel: Powder coating (≥60μm) or Hot-dip galvanized (≥65μm, ≥480h salt spray). Stainless Steel: 304 or 316L. Aluminum: 6063, anodized (≥12μm). |
|
Plate Thickness (Steel/SS) |
W≤150mm: 1.0mm; 150<W≤300: 1.2mm; 300<W≤500: 1.5mm; 500<W≤800: 2.5mm; W>800: 3.0mm |
|
Plate Thickness (Aluminum) |
W≤150mm: 1.2mm; 150<W≤300: 1.5mm; 300<W≤500: 2.0mm; 500<W≤800: 2.5mm; W>800: 3.5mm |
|
Load Performance |
Deflection ≤ Span / 200 at rated load. Meets JB/T 10216-2025 standard. |
|
Accessories |
90° bends, tees, crosses, reducers, end caps, full cover plates, splice plates, grounding clips, bolts, brackets, drop rods |
