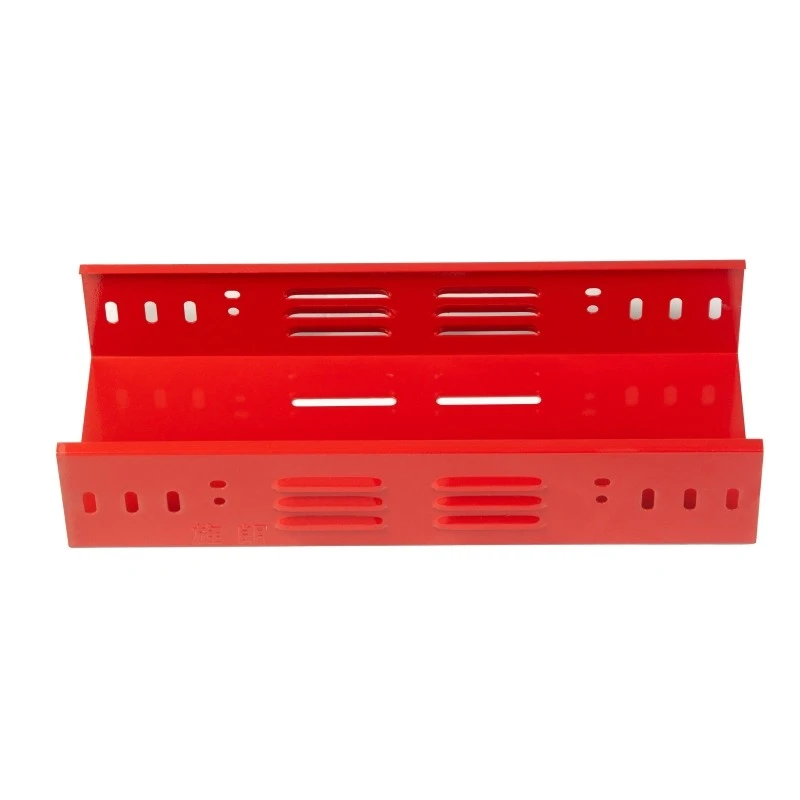

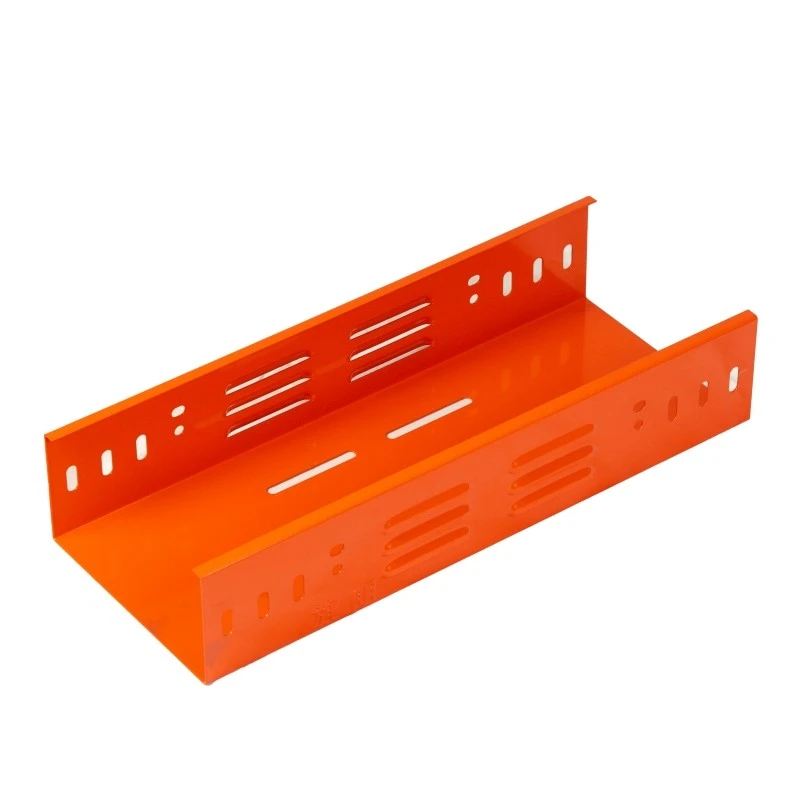

Power cables produce heat. The heat needs to go somewhere. In a closed tray, heat builds up. This makes cables run hotter than they should. Hot cables fail sooner. Our Ventilated Channel Cable Tray solves this problem. It has ventilation slots in the bottom and sides. Air flows through these openings. Heat escapes. The cables run cooler. This simple design makes a big difference in cable life.
Smart Slot Placement

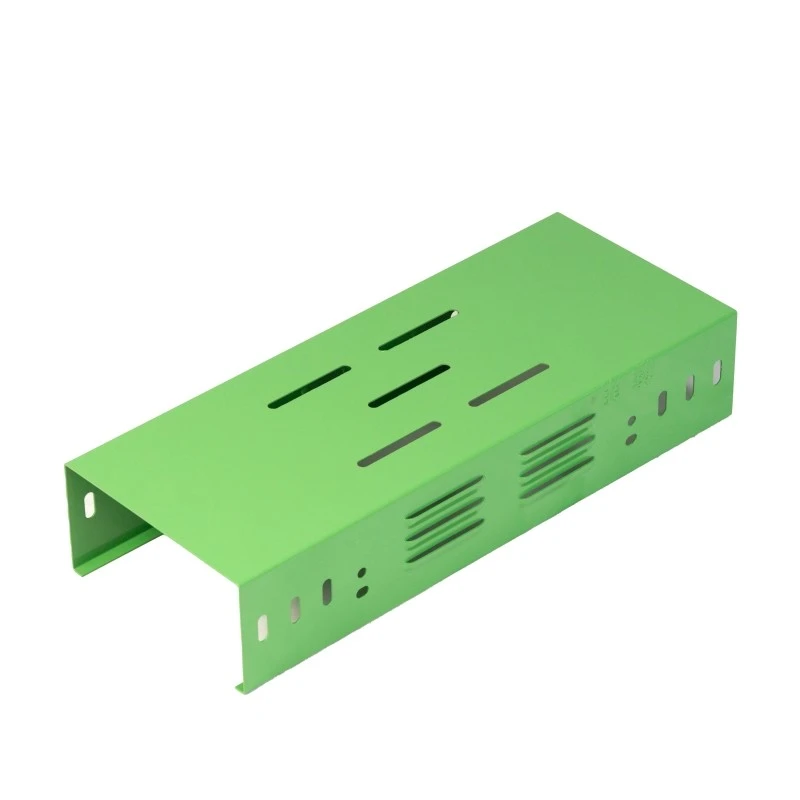

We place the slots carefully. They are in rows that do not weaken the tray. The material between the slots supports the cables. The edges are smooth. No burrs. No sharp metal. The slots are evenly spaced. This gives uniform airflow across the entire tray. Hot spots do not develop. Every cable gets the same cooling. The tray also keeps out larger debris. It is open enough for airflow but enclosed enough for basic protection.
Used in Power Rooms and Equipment Areas

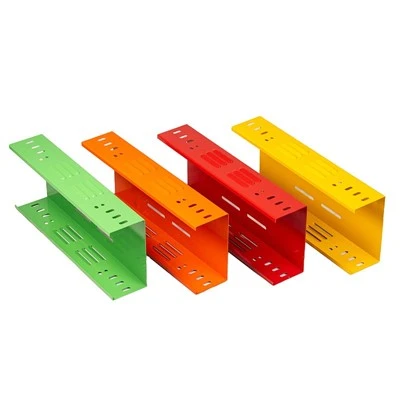

The Ventilated Channel Cable Tray works well in power rooms, equipment rooms, and industrial workshops. These places have many cables. They need cooling. They also need some protection from falling dust and debris. We offer this tray in several materials. Powder-coated steel works indoors. Hot-dip galvanized steel works outdoors. Stainless steel works in wet areas. Aluminum works when weight is a concern. All accessories match the ventilation design. Bends and tees also have slots. Airflow continues through the entire system. Our 2-year warranty covers everything.
Product Specifications
|
Parameter |
Specifications / Options |
|
Width |
50, 100, 150, 200, 250, 300, 400, 500, 600, 800, 1000mm (custom up to 1200mm) |
|
Side Height |
25, 50, 100, 150, 200mm |
|
Standard Length |
2000mm, customizable to 3000/4000/6000mm |
|
Structure |
Channel style with ventilation slots on bottom and sides. Smooth, deburred edges. Even slot spacing. |
|
Material & Finish |
Q235 Carbon Steel: Powder coating (≥60μm) or Hot-dip galvanized (≥65μm, ≥480h salt spray). Stainless Steel: 304 or 316L. Aluminum: 6063, anodized (≥12μm). |
|
Plate Thickness (Steel/SS) |
W≤150mm: 1.0mm; 150<W≤300: 1.2mm; 300<W≤500: 1.5mm; 500<W≤800: 2.5mm; W>800: 3.0mm |
|
Plate Thickness (Aluminum) |
W≤150mm: 1.2mm; 150<W≤300: 1.5mm; 300<W≤500: 2.0mm; 500<W≤800: 2.5mm; W>800: 3.5mm |
|
Load Performance |
Deflection ≤ Span / 200 at rated load. Slot pattern preserves structural integrity. |
|
Accessories |
90° bends, tees, crosses, reducers, end caps, ventilated covers, splice plates, bolts, brackets, drop rods |
