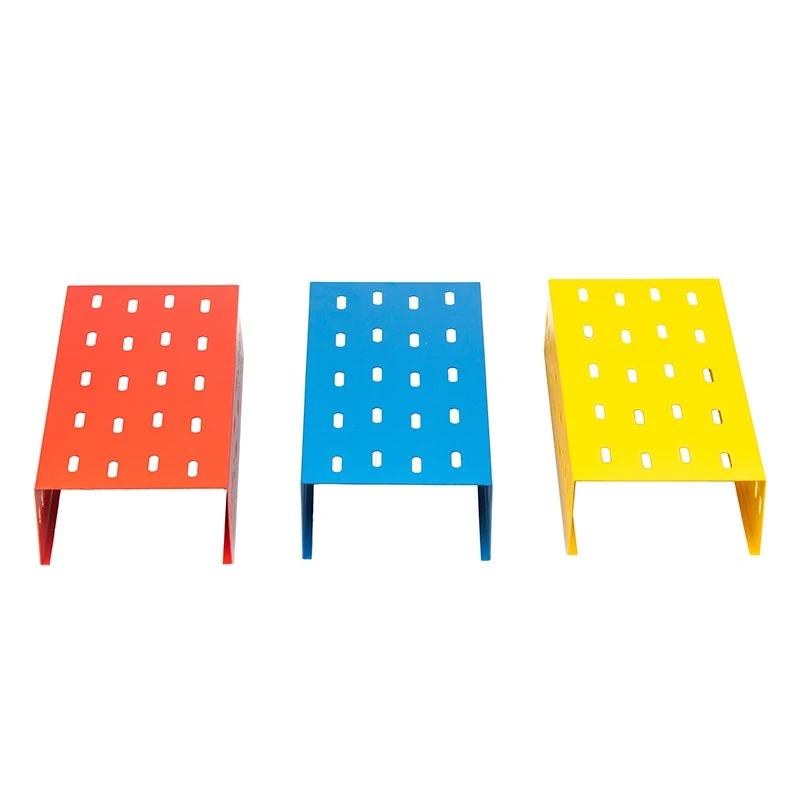

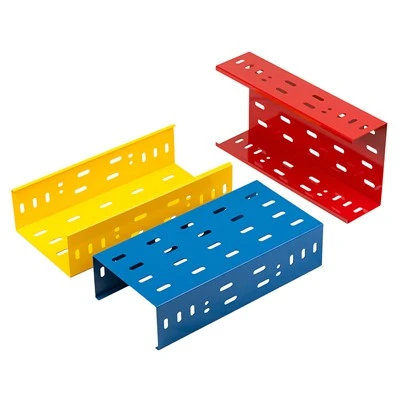

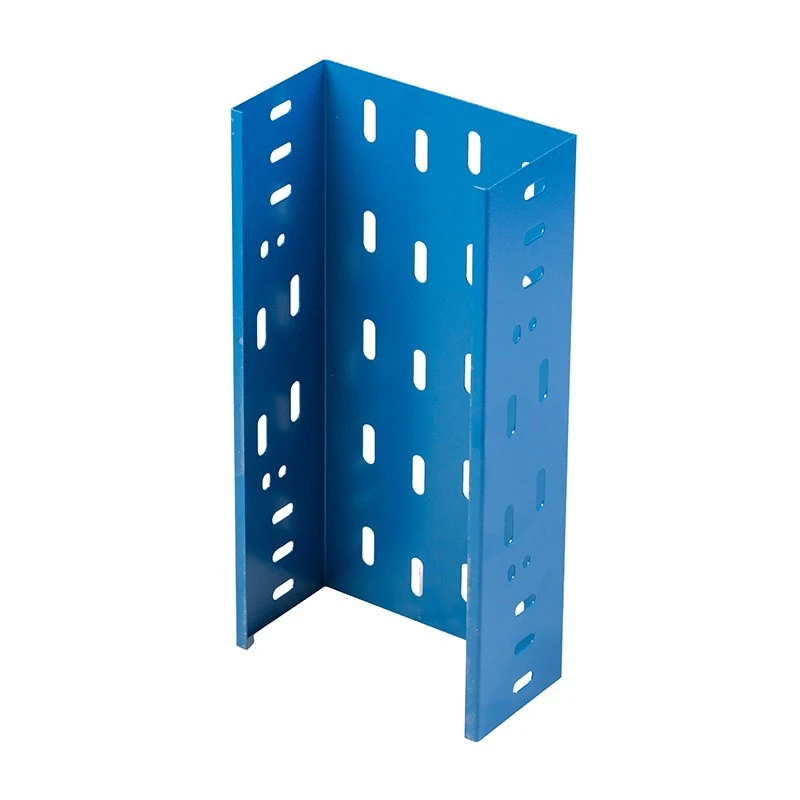

This tray is exactly what it sounds like. It is made of metal. It has holes. It is a tray. Our Metallic Perforated Cable Tray is a simple, functional product. It works for many applications. The material can be carbon steel or stainless steel. You choose what fits your project. Carbon steel is the most common choice. It is strong and affordable. Stainless steel is for wet or corrosive environments.
The Perforations Serve Multiple Purposes
The holes in the bottom are not decorative. They have real functions. First, they let heat escape. Cables stay cooler. Second, they make the tray lighter. Less weight means easier installation and lower shipping costs. Third, you can see through the holes. Inspection is simple. You do not need to lift cables to check their condition. The holes are arranged in a matrix pattern. This gives uniform strength across the tray. The tray does not bend or sag under normal loads.
Carbon Steel and Stainless Steel Options
We offer this tray in two main material families. Carbon steel is the standard choice. It is strong, durable, and cost-effective. For outdoor use, we hot-dip galvanize the carbon steel. This gives it rust protection. For indoor use, powder coating is available. Stainless steel is the premium choice. It does not rust. It resists chemicals. It is ideal for food plants, pharmaceutical factories, and wet areas. All accessories match the tray material. Our 2-year warranty covers the complete system.
Product Specifications
|
Parameter |
Specifications / Options |
|
Width |
50, 100, 150, 200, 250, 300, 400, 500, 600, 800, 1000mm (custom up to 1200mm) |
|
Side Height |
25, 50, 100, 150, 200mm |
|
Standard Length |
2000mm, customizable to 3000/4000/6000mm |
|
Structure |
Perforated tray with matrix hole pattern. Available in carbon steel or stainless steel. |
|
Material & Finish |
Q235 Carbon Steel: Hot-dip galvanized (≥65μm, ≥480h salt spray) or Powder coating (≥60μm). Stainless Steel: 304 or 316L. |
|
Plate Thickness (Steel/SS) |
W≤150mm: 1.0mm; 150<W≤300: 1.2mm; 300<W≤500: 1.5mm; 500<W≤800: 2.5mm; W>800: 3.0mm |
|
Hole Pattern |
Standard matrix arrangement for cooling, drainage, and visibility. |
|
Load Performance |
Deflection ≤ Span / 200 at rated load. Meets JB/T 10216-2025 standard. |
|
Accessories |
90° bends, tees, crosses, reducers, end caps, splice plates, grounding clips, bolts, brackets, drop rods. All accessories match tray material and finish. |
