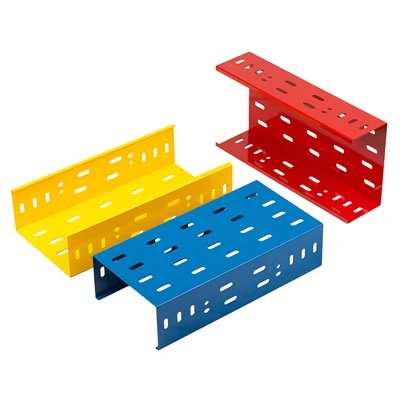

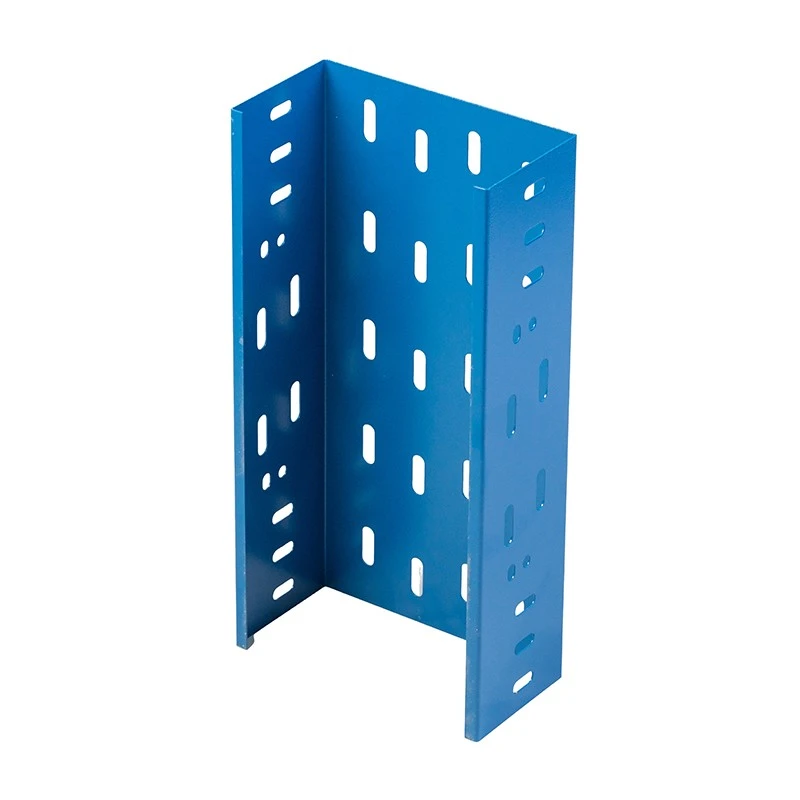

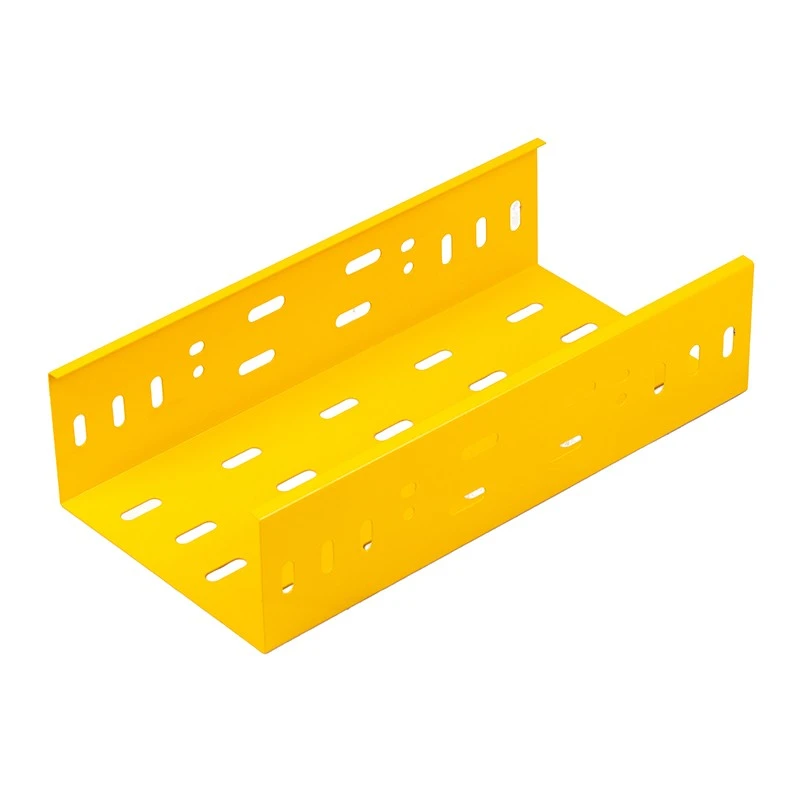

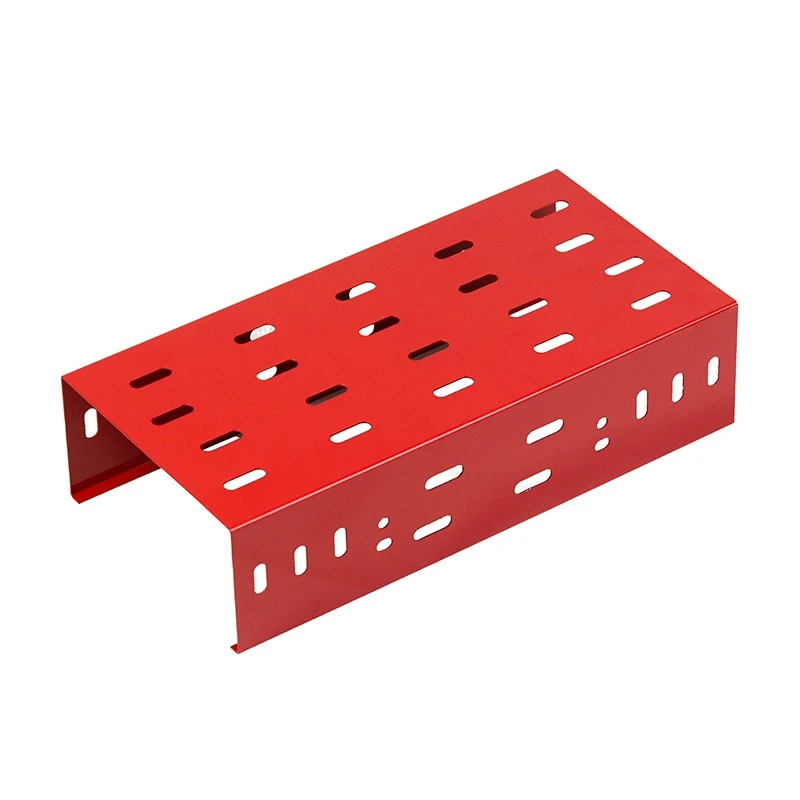

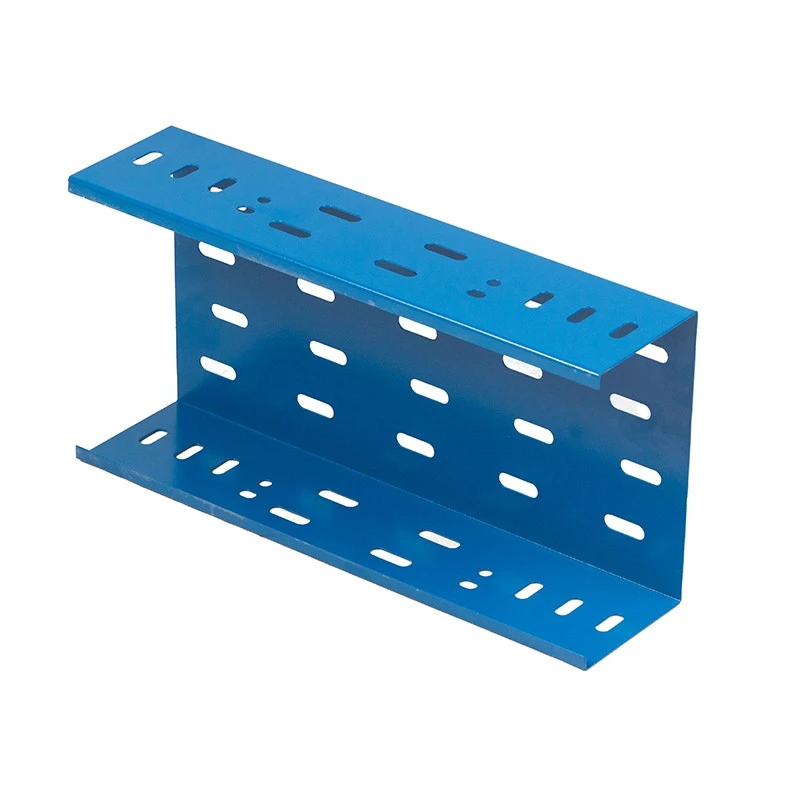

This is our basic perforated metal tray. It is made of metal. It has holes. It carries cables. The design is simple. The function is reliable. Our Perforated Metal Cable Tray is used in many projects. It works for power cables. It works for data cables. It works indoors. It works outdoors with the right finish. This is a versatile tray that fits most applications.
Why Perforated?
The holes make a difference. They allow heat to escape. Cables run cooler. They allow water to drain. No pooling on the tray. They make the tray lighter. Easier to handle and install. They allow visual inspection. You can check cable condition without moving them. The holes are arranged in a regular pattern. This provides uniform strength. The tray does not sag under load. The edges of the holes are smooth. No sharp metal. No damage to cable insulation.
Available in Multiple Materials
The Perforated Metal Cable Tray is available in several materials. Q235 carbon steel is the most common. It is strong and affordable. For outdoor use, we hot-dip galvanize it. The zinc coating is 65μm or thicker. For indoor use, we powder coat it. The coating is 60μm thick. Stainless steel is available for corrosive environments. 304 grade works for most wet areas. 316 grade is for coastal and chemical applications. Aluminum is also available for weight-sensitive projects. All accessories match the tray material. Our 2-year warranty covers the complete system.
Product Specifications
|
Parameter |
Specifications / Options |
|
Width |
50, 100, 150, 200, 250, 300, 400, 500, 600, 800, 1000mm (custom up to 1200mm) |
|
Side Height |
25, 50, 100, 150, 200mm |
|
Standard Length |
2000mm, customizable to 3000/4000/6000mm |
|
Structure |
Perforated metal tray. Standard matrix hole pattern. Smooth hole edges. |
|
Material & Finish |
Q235 Carbon Steel: Hot-dip galvanized (≥65μm, ≥480h salt spray) or Powder coating (≥60μm). Stainless Steel: 304 or 316L. Aluminum: 6063, anodized (≥12μm). |
|
Plate Thickness (Steel/SS) |
W≤150mm: 1.0mm; 150<W≤300: 1.2mm; 300<W≤500: 1.5mm; 500<W≤800: 2.5mm; W>800: 3.0mm |
|
Plate Thickness (Aluminum) |
W≤150mm: 1.2mm; 150<W≤300: 1.5mm; 300<W≤500: 2.0mm; 500<W≤800: 2.5mm; W>800: 3.5mm |
|
Load Performance |
Deflection ≤ Span / 200 at rated load. Meets JB/T 10216-2025 standard. |
|
Accessories |
90° bends, tees, crosses, reducers, end caps, splice plates, grounding clips, bolts, brackets, drop rods |
